2LINE Helios BOX
Customer line termination
2LINE Helios BOX
- all expansion types possible without pre-configuration
- symmetrical design for maximum flexibility during installation and tension interception
- separation of patch and splice area allows connection without specialised personnel

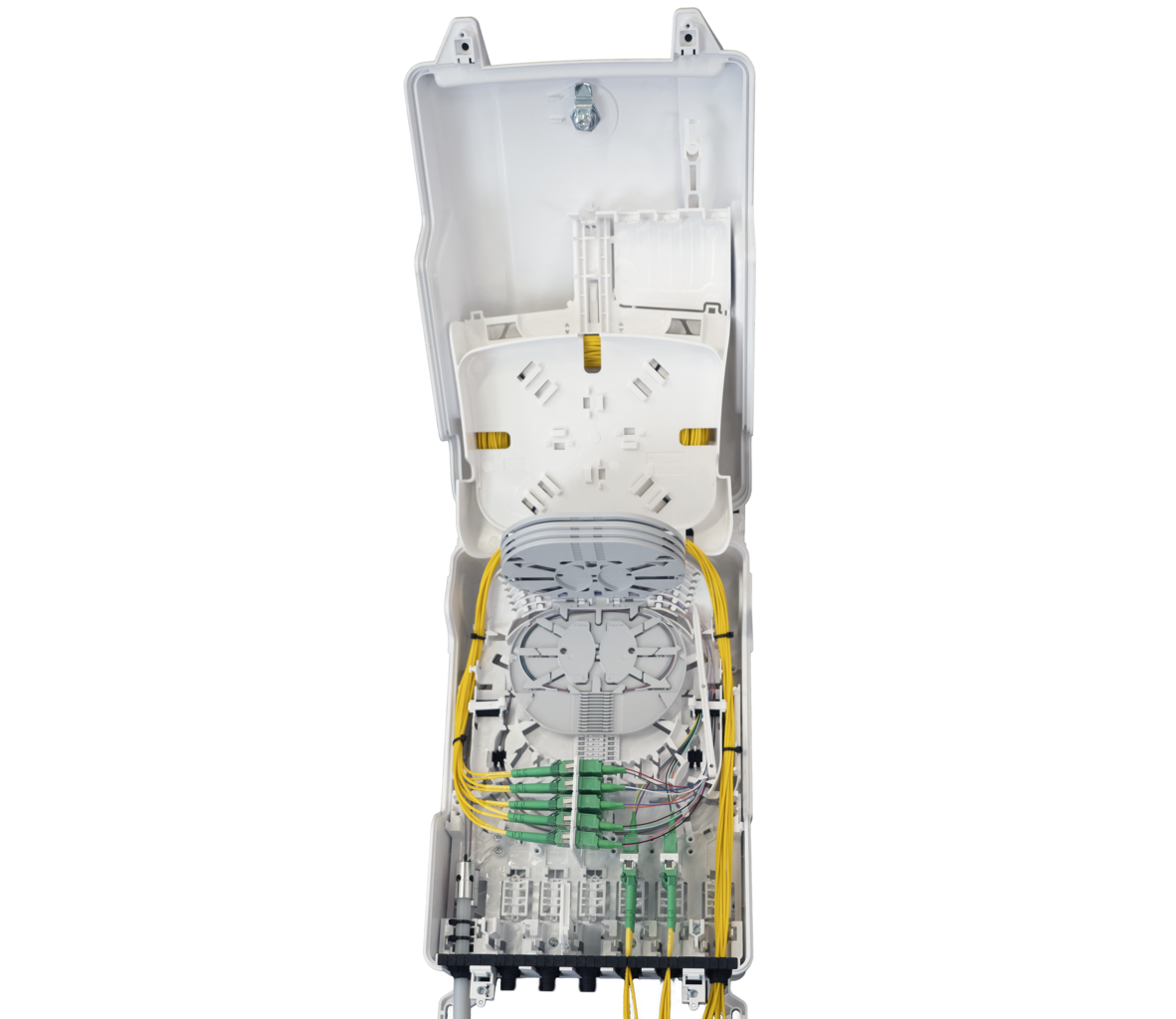

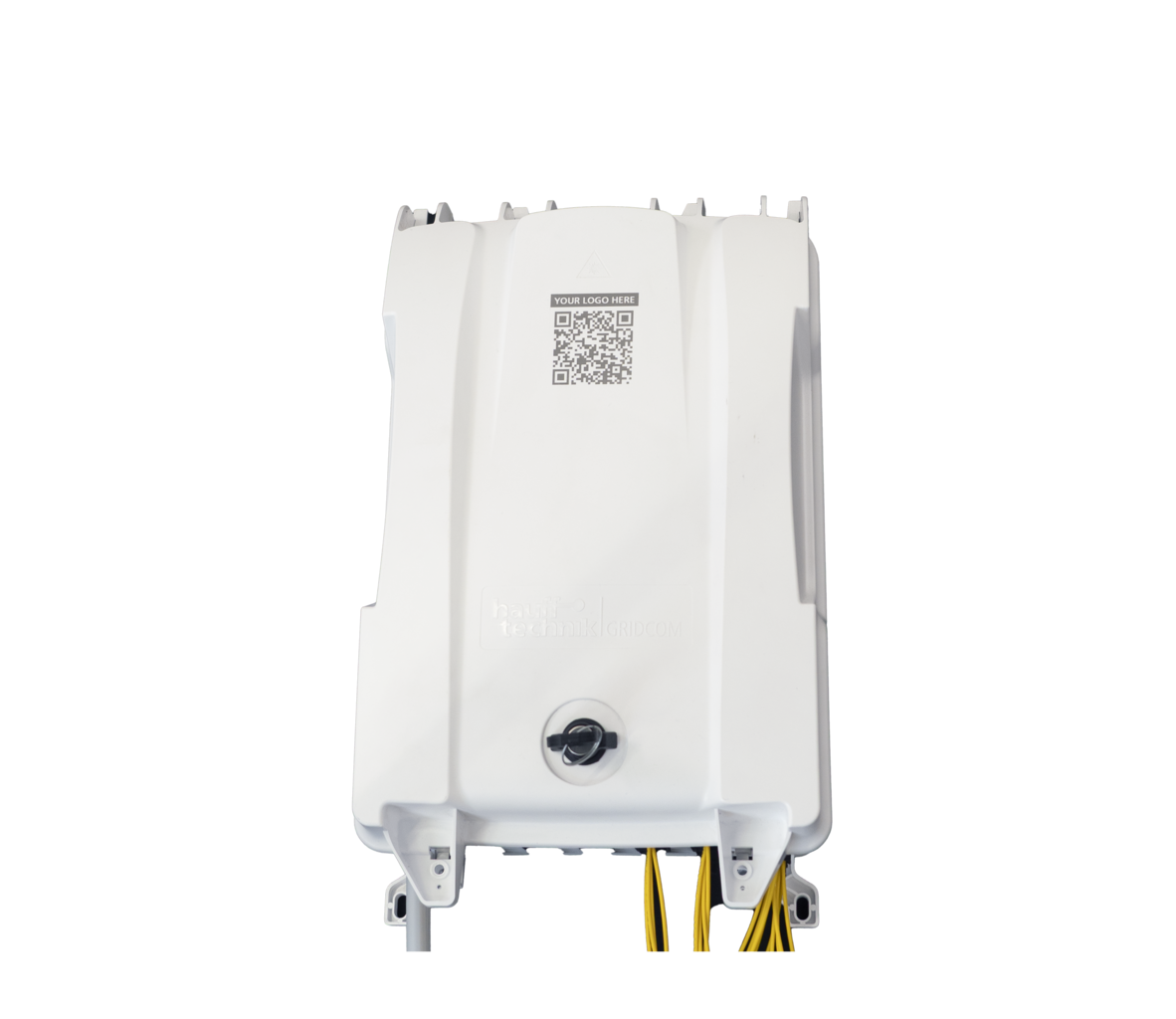

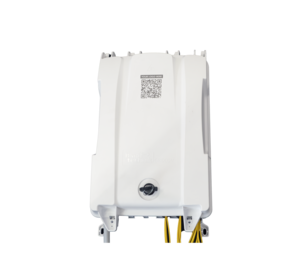

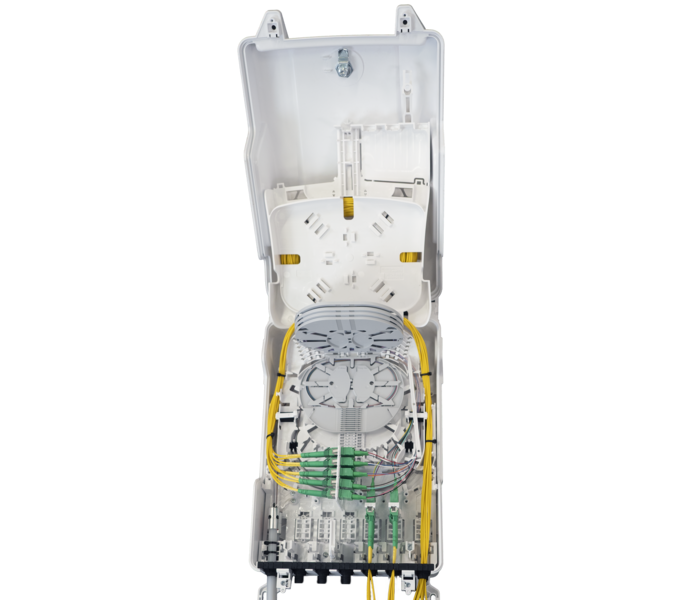

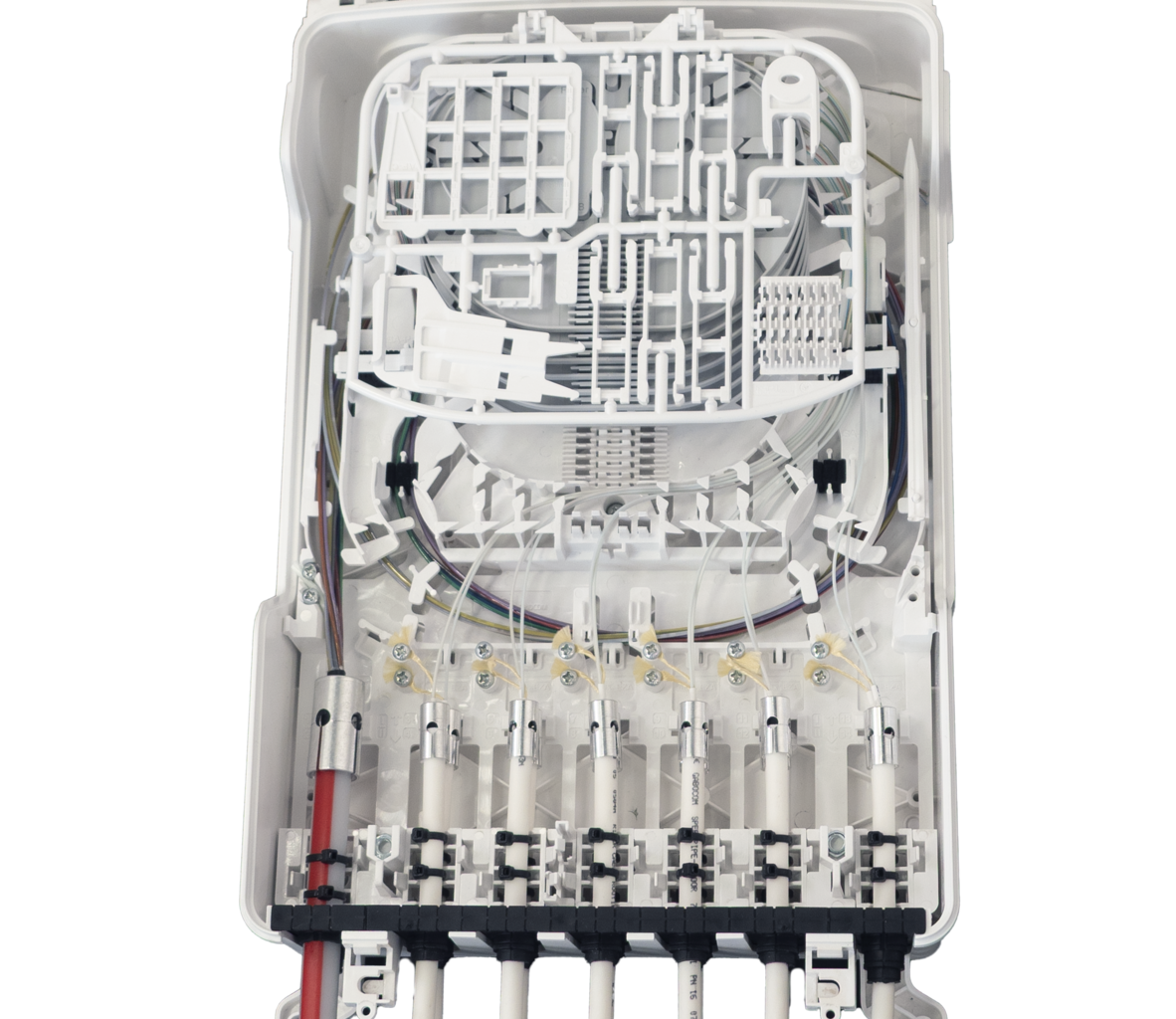

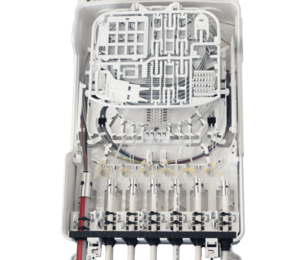

The 2LINE Helios BOX is an optical fibre termination point for terminating the fibre in the building. All features and functions for a professional transfer and termination point of an FTTx network are represented in a robust plastic housing.
Facts
Advantages:
- accommodates up to 13 couplers (LC duplex, SC or E2000)
- holds 28 crimp splices or 14 shrink splices
- can be extended to 112 crimp splices or 98 shrink splices by installing 7 cassettes

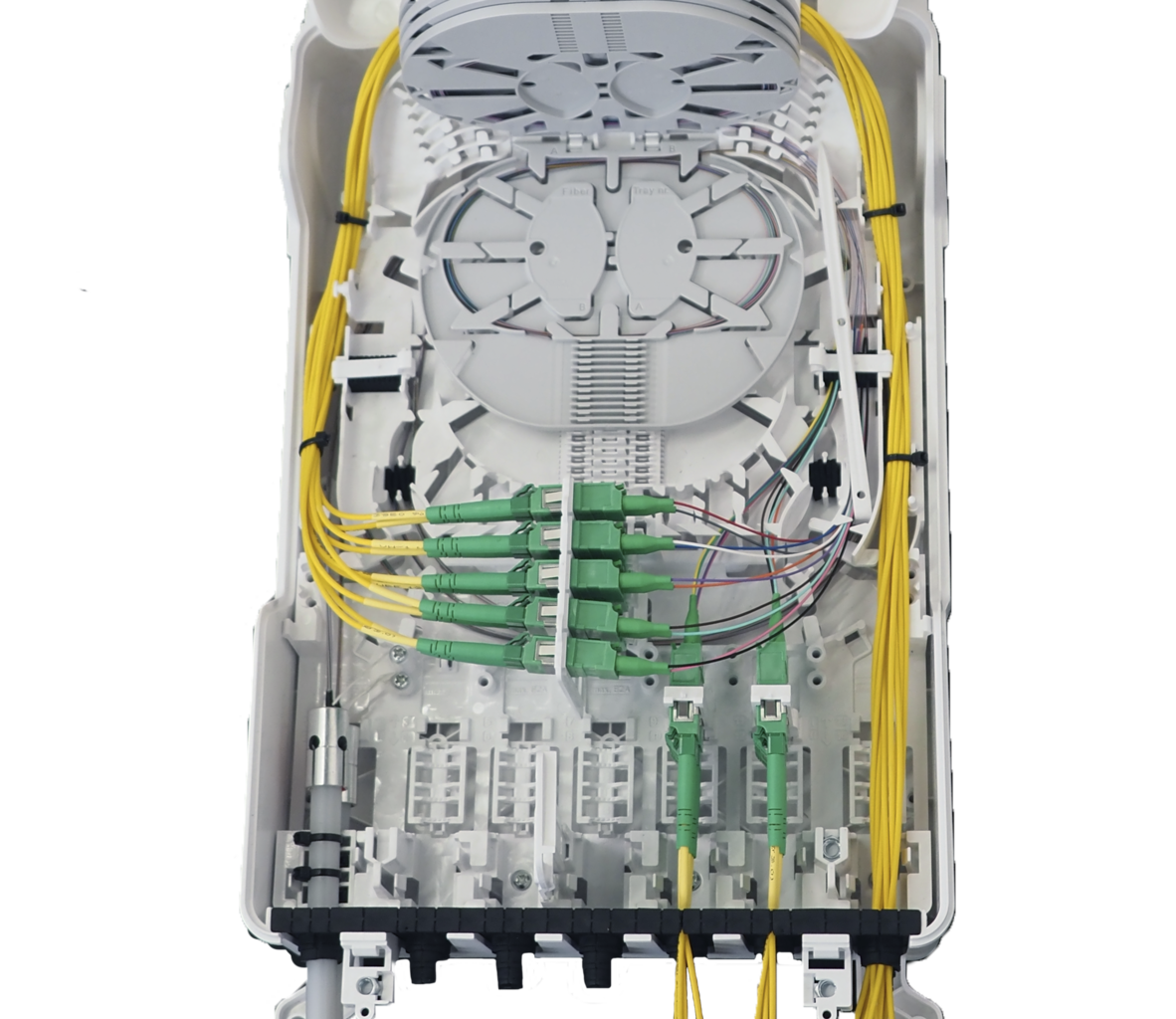

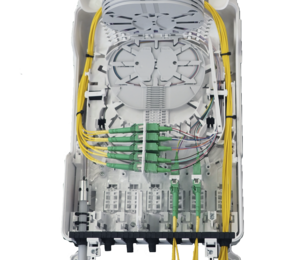

- separation between patch and splice area by inner cover
- optimised for installations with pre-assembled cables

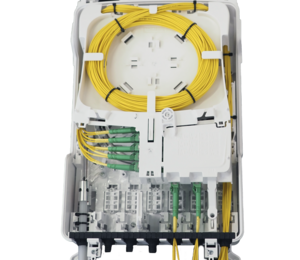

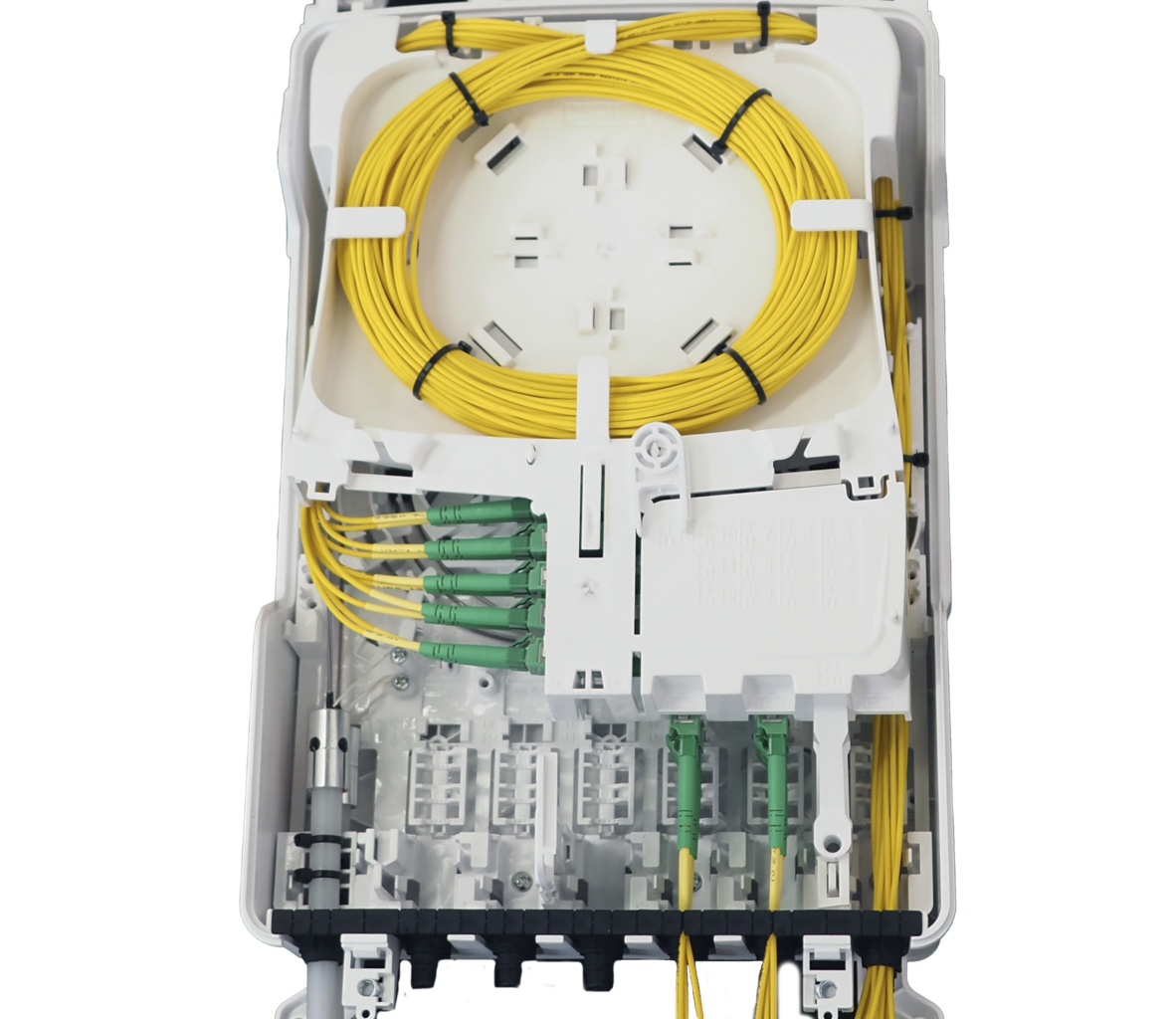

- versatile options for loose tube and cable overlength storage
Scope of delivery:
- 2LINE Helios BOX
- mounting material
- assembly instructions via QR code
- inner lid (optional)
- couplings and pigtails (optional)
- lock (optional)
- splice cassettes (optional)
- label (printing according to customer requirements possible) (optional)
Dimensions:
- HxWxD [mm]: 384x235x113
Material:
- plastic PC / ABS, signal white RAL 9003
- UV-resistant
Tests/Standards:
- protection class IP54
- self-extinguishing according to UL94 V0
Downloads
Brochures
Data sheet & tender specification
For download of data sheet and tender specification please configurate the product in the section below and download via the symbol
