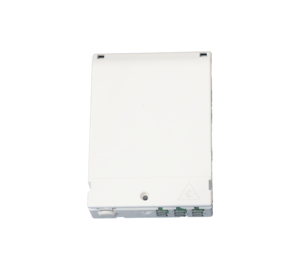

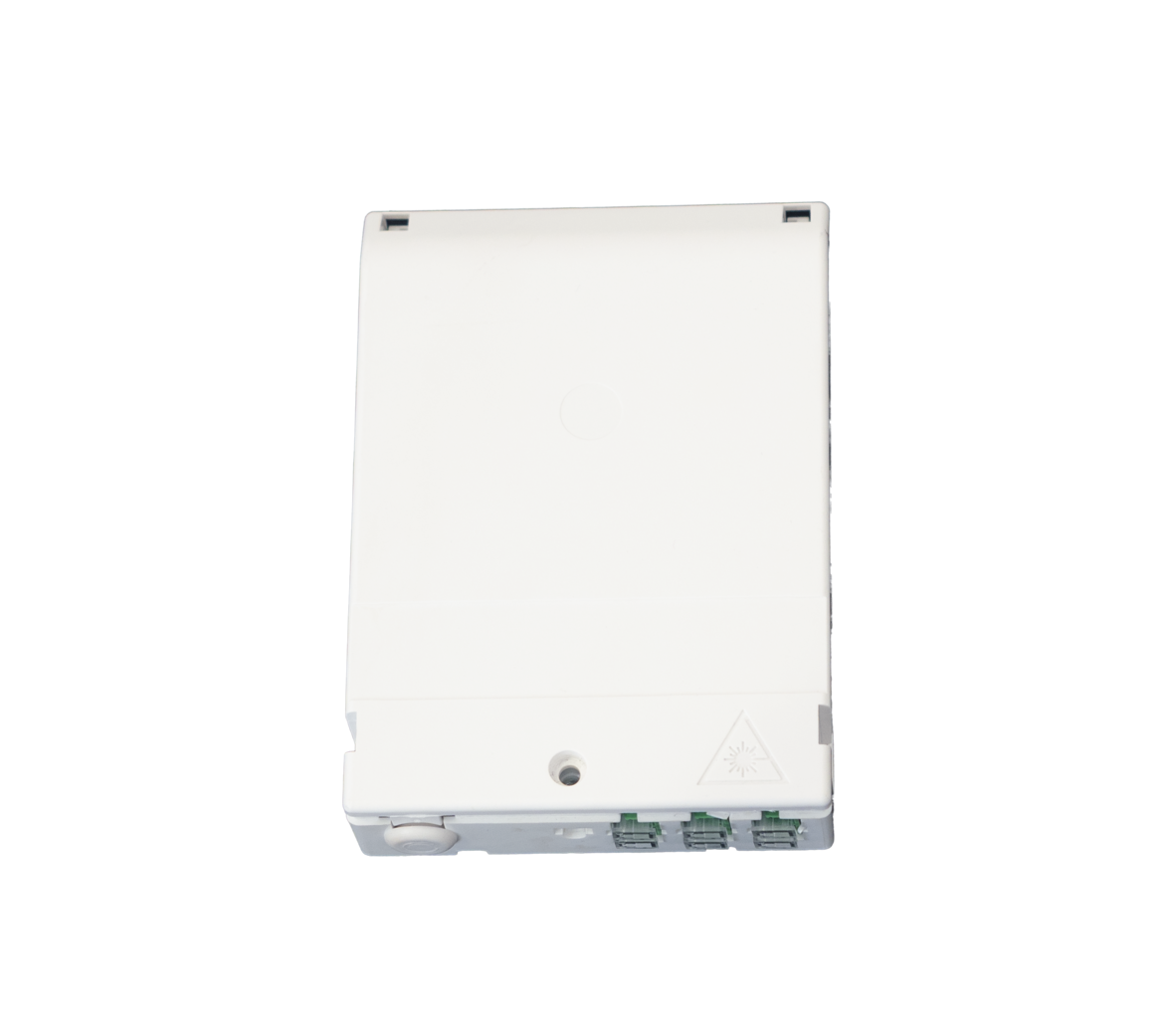

2LINE Athene BOX

Optical telecommunication outlet / Customer line termination

2LINE Athene BOX

2LINE Athene BOX - Optical telecommunication outlet / Customer line termination

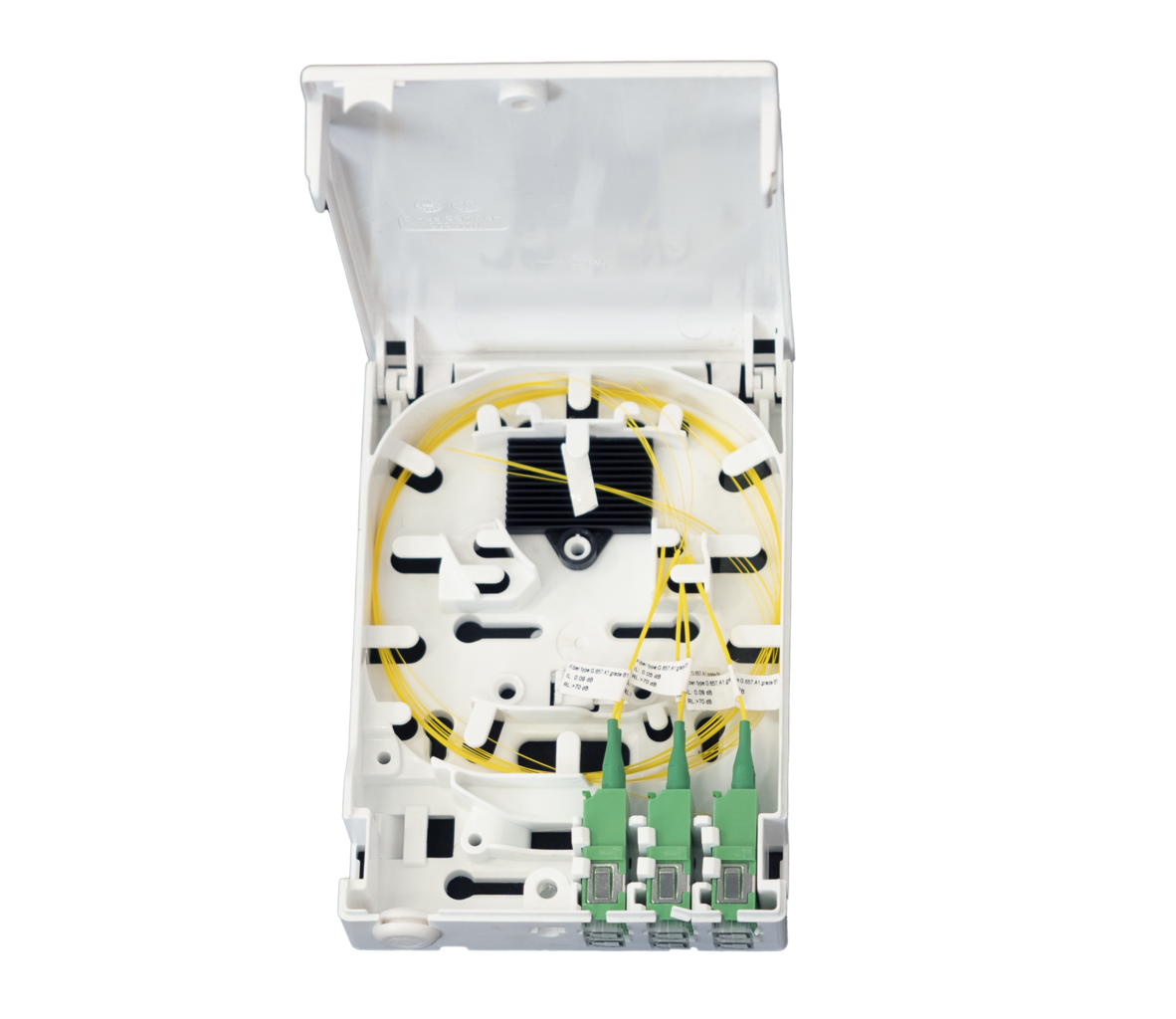

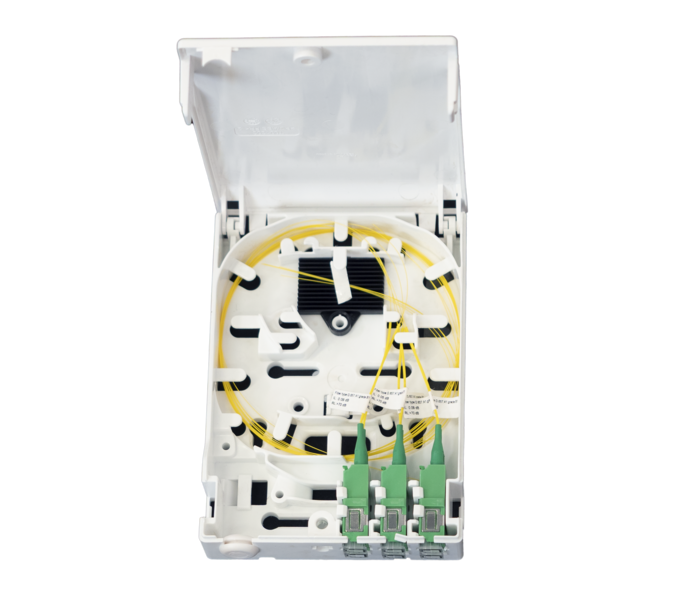

  • Holds up to 3 LC duplex couplings and 6 LC pigtails
  • Uncomplicated and fast connection without unwanted damping thanks to smart fibre routing
  • Easy storage of excess cable lengths in the 2LINE Athene KÜB
The 2LINE Athene BOX is a multifunctional fibre optic termination point that enables you to conclude your network at the highest quality standard. The use of High- Performance plastics ensures that the 2LINE Athene BOX can be used and installed worriless even under difficult conditions. In combination with the optionally available 2LINE Athene KÜB, excessive long assembled cables and its connectors can be also easily stored.
2LINE Athene BOX - Optical telecommunication outlet / Customer line termination

Facts

Advantages:

  • Use as termination point in single and multi-subscriber’s buildings
  • Use as subscriber connection box in single-family homes and apartment buildings
  • Use as a transfer point for business customers
  • Use as transfer point from outdoor to in-house cable
  • Use on flush-mounted boxes
  • Tube/cable entry and fixation up to max. Ø10mm
  • Alternative output with cable and cable clamp by screw or 2LINE ZAF
  • Storage of gas/water stop (EZA) in AP
  • Guide elements to maintain bending radius (R30mm)
  • Mounting on multiple flush-mounted boxes, also beside already existing connections

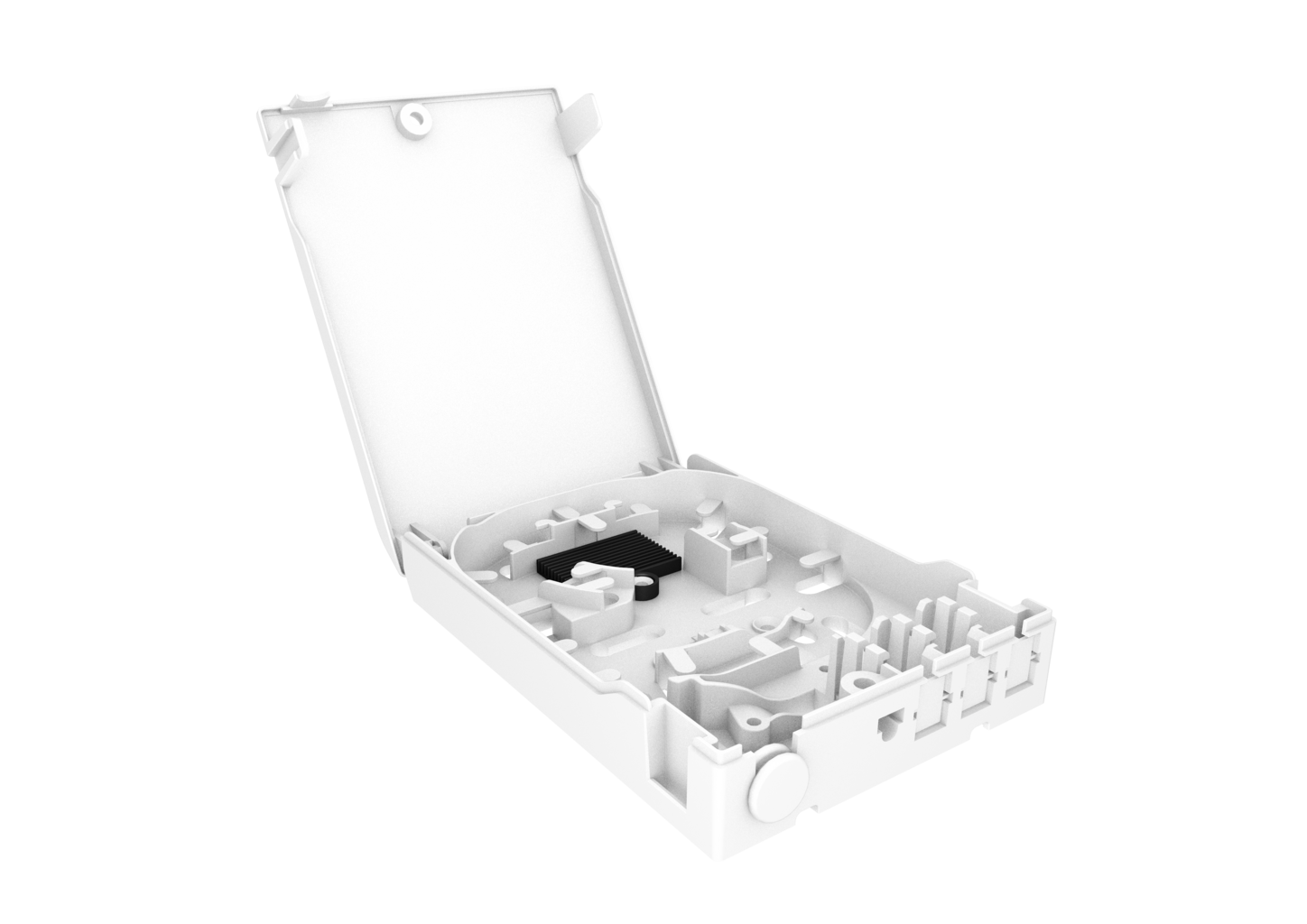

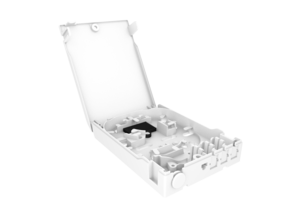

  • Hinged, captive lid
  • Closure with self-locking and additional screw or seal

Scope of delivery:

  • Splice protection holder 12x crimp or 6x shrink
  • Cable entry sleeve with membrane (max.Ø7mm)
  • Cable ties
  • Screws for fastening the aramid yarn
  • Locking Torx screws
  • Assembly instruction
  • Wall fixation material (Universal plugs and screws)
  • Adapters and pigtails included (yellow) (optional)
  • Customer logo (optional)

Dimensions:

  • HxWxD[mm]: 135x96x27

Material:

  • Plastic, signal white RAL 9003

Tests/Standards:

  • Protection Index IP20
  • Impact resistant IK07
  • Self-extinguishing according to UL94 V0 and UV-resistant
Downloads

No downloads available

Data sheet & tender specification

For download of data sheet and tender specification please configurate the product in the section below and download via the symbol

Variants

ItemOrder ref.Article no.
Leergehäuse2LINE Athene BOX21066
title=
1 Kupplung / 1 Pigtail2LINE Athene BOX 1K1Pb LC/APC B21067
title=
1 Kupplung / 2 Pigtails2LINE Athene BOX 1K2Pb LC/APC B21068
title=
2 Kupplungen / 3 Pigtails2LINE Athene BOX 2K3Pb LC/APC B21069
title=
2 Kupplungen / 4 Pigtails2LINE Athene BOX 2K4Pb LC/APC B21070
title=
3 Kupplungen / 5 Pigtails2LINE Athene BOX 3K5Pb LC/APC B21071
title=
3 Kupplungen / 6 Pigtails2LINE Athene BOX 3K6Pb LC/APC B21072
title=
2LINE Athene KÜB2LINE Athene KÜB21073
