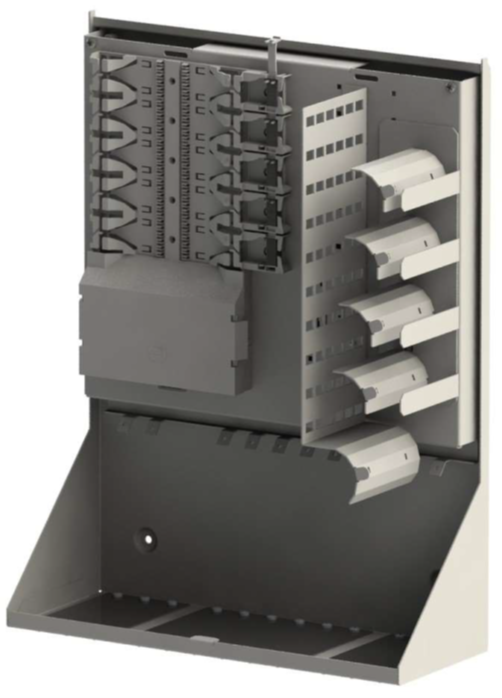

2LINE Customer Outlet Box COB

Optic fibre management system

2LINE COB M

2LINE Customer Outlet Box COB - Optic fibre management system
  • Installation of E&MMS cassette system and patch field for the accomodation of adapters
  • Variable extension for splicing or patching
  • Different sizes (S,M,L) available
The 2LINE COB is a modular fibre optic distribution system for splicing and patching of optical fibres. It is used in buildings, smaller control cabinets and as outdoor distribution boxes. There is a wide range of different configuration possibilities.
2LINE Customer Outlet Box COB - Optic fibre management system

Facts

Advantages:

  • Possibility to install splitters
  • Inlet / outlet for cables / pipes with Ø3 to Ø20mm
  • Possibility of depositing excess loose tube length and cable loop
  • Removable protective hood
  • Suitable for indoor and outdoor use
  • Easy access and installation
  • Simple wall installation
  • Closure: lock

Scope of delivery:

  • 1 pc. 2LINE COB M
  • Couplings and pigtails (optional)
  • Cable bushings (Ø1.5 - 35mm) (optional)
  • Splice cassettes (crimp or shrink splice protection) (optional)
  • Cassettes with PLC splitters (optional)
  • Patch panel for max. 60 couplings (optional)
  • ZEA (central interception element) (optional)

Dimensions:

  • HxWxD[mm]: 440x415x150
  • Impact resistance class IP54
Downloads

No downloads available

Data sheet & tender specification

For download of data sheet and tender specification please configurate the product in the section below and download via the symbol

Variants

DimensionOrder ref.Article no.
540x425x1602LINE COB Gr. M21509
title=
540x425x1602LINE COB Gr. M (SP)21511
title=
