House connectionMIS40S

Membrane injection system

for buildings without a basement

MIS40S

Membrane injection system - for buildings without a basement

Product
available at

universal building entry with membrane injection system for core holes in the most common types of wall
Controlled resin discharge through slotted membrane hose

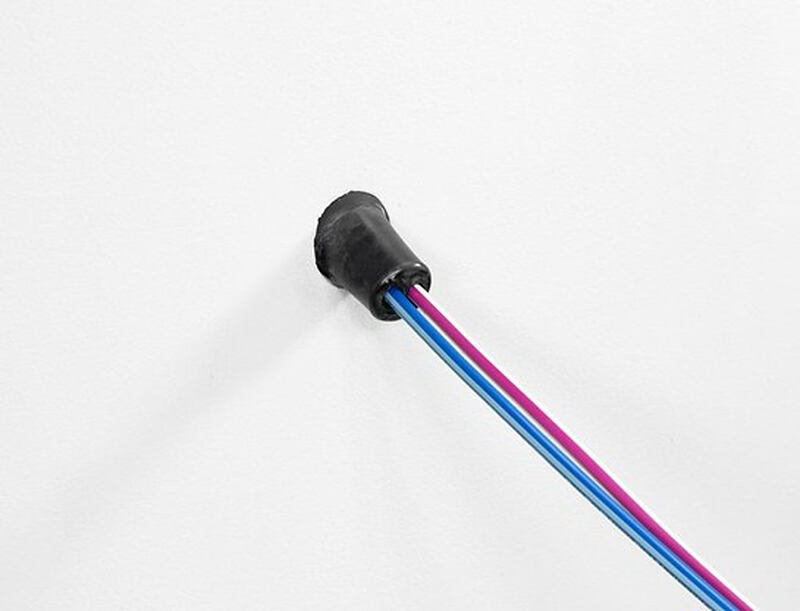

sealing lips ensure gentle seal for cables/pipes

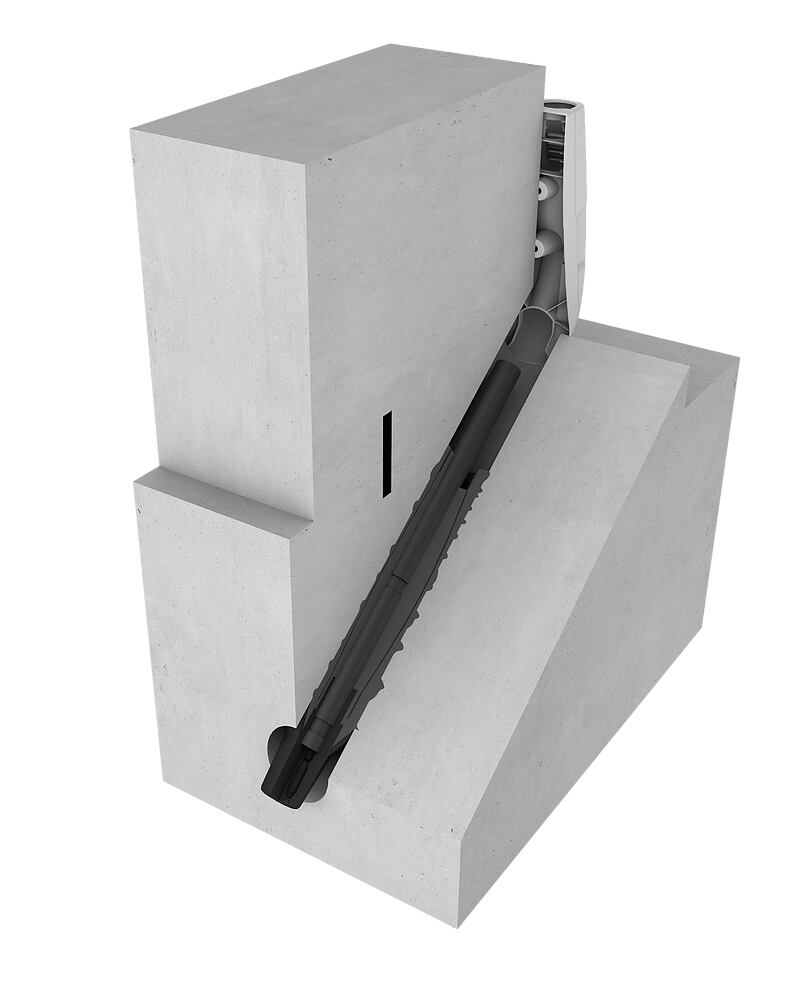

Suitable for angled installation through the wall or floor slab.

Membrane injection system - for buildings without a basement

Facts

Material:

Waterproof concrete stress class 2, Waterproof concrete stress class 1
Flange and counter-bearing EPDM
Resin injection hose: PE
Pipe: PVC-U
Wall terminator element: Flame-retardant polycarbonate
Quick tensioning device: glass fibre reinforced polyamide/ABS

Advantages:

Quick to assemble in just a few minutes
No repair of the basement waterproofing in accordance with DIN 18533 necessary

Scope of delivery:

1 packing unit:
10 pieces of MIS 40S
10 pieces of wall terminator element
10 pieces 2-component resin Resinator, 150 ml
1 piece of quick tensioning device MIS40 SVS

Dimensions:

For core drills ID: 40 - 50 mm
Overall length: 1300 mm

Downloads

Brochures

Assembly instructions

MIS40S (PDF, 1MB)

Data sheet & tender specification

For download of data sheet and tender specification please configurate the product in the section below and download via the symbol

Variants

Number of cables/medium	Suitable for medium pipe OD (mm)	Overall lenght (mm)	wall thickness (mm)	Order ref.	Article no.
2	5 - 7	1300	200 - 1.200	MIS40S 2x5-7 Set10	3030380167	Your download for the choosen variant: Datenblatt Download (.pdf) Tender specifications GAEB XML (.x81) GAEB 90 (.d81) Text view (.txt) Word (.docx) Quantity:
1	9 - 12	1300	200 - 1.200	MIS40S 1x9-12 Set10	3030380168	Your download for the choosen variant: Datenblatt Download (.pdf) Tender specifications GAEB XML (.x81) GAEB 90 (.d81) Text view (.txt) Word (.docx) Quantity:

Accessories

2-component resin Resinator expansion resin

2-component resin Resinator

Cartridge gun for side-by-side cartridges

Cartridge gun

(Required for installation)

Quick tensioning device for MIS 40

Quick tensioning device

(Required for installation)
