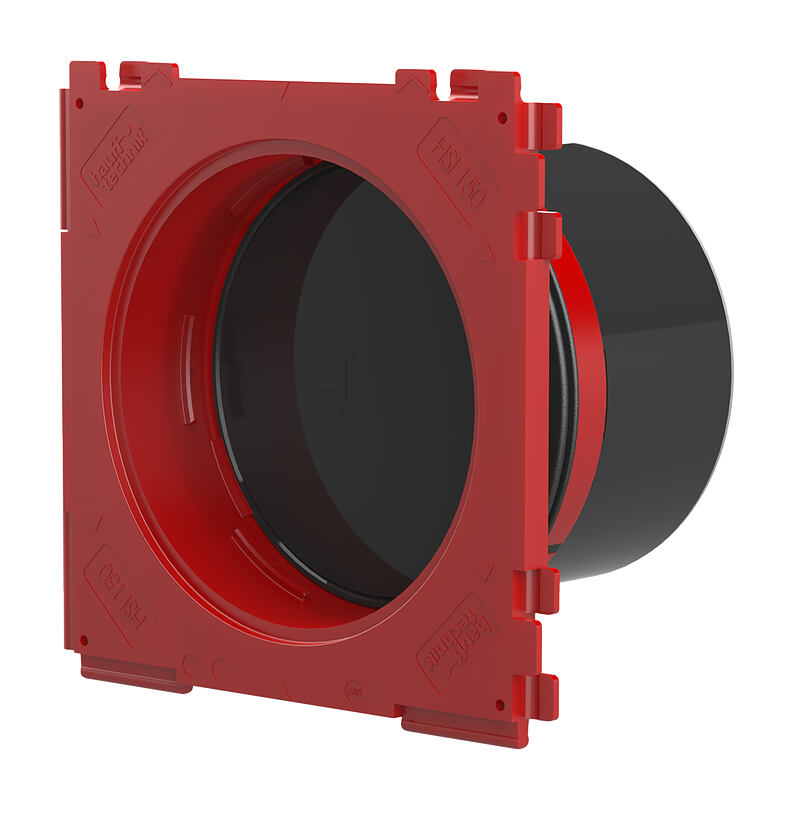

PoP-StationsHSI150 K/X

Single wall insert

for setting in concrete

HSI150 K/X

Product
available at

Double security with closing cover and blind plate for wall thicknesses from 70 to 150 mm
injection molded 3-ribbed seal for pressure-tightness seal with concrete
Quality seal: tightness from the factory. Option to check for accidental or unauthorized opening of the closing cover

For the gas-tight and watertight connection on one side of system seals for cables or cable ducts, providing high flexibility for future use.

Facts

Material:

Waterproof concrete stress class 2, Waterproof concrete stress class 1
Wall insert: ABS with TPE 3-ribbed seal
Adapter pipe with blind plate: ABS or for wall thickness > 150 mm: PVC
Closing cover: ABS with TPE seal

Advantages:

System seal can be connected (e.g. cable duct connection or cable seal)
Packages can be created with frame connection system on site

Scope of delivery:

1 piece pressure-tight closing cover

Dimensions:

Frame dimensions: 220x 220 mm
Centre to centre distance: 210 mm
Minimum wall thickness: 70 mm

Properties:

FHRK-certified
Blind plate for breaking through
Entry remains pressure tight even if closing cover is removed

Downloads

Assembly instructions

HSI90/HSI150 (PDF, 1.019KB)

Test reports

Data sheet & tender specification

For download of data sheet and tender specification please configurate the product in the section below and download via the symbol

Variants

Other lengths on request

wall thickness (mm)	Order ref.	Article no.
70	HSI150 1x1 K/70	2140100070	Your download for the choosen variant: Datenblatt Download (.pdf) Tender specifications GAEB XML (.x81) GAEB 90 (.d81) Text view (.txt) Word (.docx) Quantity:
80	HSI150 1x1 K/80	3030303488	Your download for the choosen variant: Datenblatt Download (.pdf) Tender specifications GAEB XML (.x81) GAEB 90 (.d81) Text view (.txt) Word (.docx) Quantity:
90	HSI150 1x1 K/90	3030303640	Your download for the choosen variant: Datenblatt Download (.pdf) Tender specifications GAEB XML (.x81) GAEB 90 (.d81) Text view (.txt) Word (.docx) Quantity:
100	HSI150 1x1 K/100	3030303428	Your download for the choosen variant: Datenblatt Download (.pdf) Tender specifications GAEB XML (.x81) GAEB 90 (.d81) Text view (.txt) Word (.docx) Quantity:
110	HSI150 1x1 K/110	3030303526	Your download for the choosen variant: Datenblatt Download (.pdf) Tender specifications GAEB XML (.x81) GAEB 90 (.d81) Text view (.txt) Word (.docx) Quantity:
120	HSI150 1x1 K/120	3030303363	Your download for the choosen variant: Datenblatt Download (.pdf) Tender specifications GAEB XML (.x81) GAEB 90 (.d81) Text view (.txt) Word (.docx) Quantity:
130	HSI150 1x1 K/130	3030303528	Your download for the choosen variant: Datenblatt Download (.pdf) Tender specifications GAEB XML (.x81) GAEB 90 (.d81) Text view (.txt) Word (.docx) Quantity:
140	HSI150 1x1 K/140	3030303477	Your download for the choosen variant: Datenblatt Download (.pdf) Tender specifications GAEB XML (.x81) GAEB 90 (.d81) Text view (.txt) Word (.docx) Quantity:
150	HSI150 1x1 K/150	3030303361	Your download for the choosen variant: Datenblatt Download (.pdf) Tender specifications GAEB XML (.x81) GAEB 90 (.d81) Text view (.txt) Word (.docx) Quantity:
200	HSI150 1x1 K/200	3030303430	Your download for the choosen variant: Datenblatt Download (.pdf) Tender specifications GAEB XML (.x81) GAEB 90 (.d81) Text view (.txt) Word (.docx) Quantity:
240	HSI150 1x1 K/240	3030303432	Your download for the choosen variant: Datenblatt Download (.pdf) Tender specifications GAEB XML (.x81) GAEB 90 (.d81) Text view (.txt) Word (.docx) Quantity:
250	HSI150 1x1 K/250	3030303434	Your download for the choosen variant: Datenblatt Download (.pdf) Tender specifications GAEB XML (.x81) GAEB 90 (.d81) Text view (.txt) Word (.docx) Quantity:
300	HSI150 1x1 K/300	3030303435	Your download for the choosen variant: Datenblatt Download (.pdf) Tender specifications GAEB XML (.x81) GAEB 90 (.d81) Text view (.txt) Word (.docx) Quantity:
365	HSI150 1x1 K/365	3030319193	Your download for the choosen variant: Datenblatt Download (.pdf) Tender specifications GAEB XML (.x81) GAEB 90 (.d81) Text view (.txt) Word (.docx) Quantity:
400	HSI150 1x1 K/400	3030303437	Your download for the choosen variant: Datenblatt Download (.pdf) Tender specifications GAEB XML (.x81) GAEB 90 (.d81) Text view (.txt) Word (.docx) Quantity:
500	HSI150 1x1 K/500	3030303439	Your download for the choosen variant: Datenblatt Download (.pdf) Tender specifications GAEB XML (.x81) GAEB 90 (.d81) Text view (.txt) Word (.docx) Quantity:
