2LINE Micro cable
2LINE Micro cable
Fibre optic microcables are designed for installation in microduct systems. With their small outer diameter and lightweight cable construction, they enable space-saving installation and can be efficiently blown in over long distances using compressed air.
For outdoor use.
For outdoor use.
Facts
Dimensions:
- Standard cable lengths: 4 and 6 km (others available on request)
Properties:
- Fibre type: 9/125 G.657.A1
- Outer jacket: Black HDPE (high-density polyethylene)
- Minimum bending radius (unloaded): 10 × D
- Minimum bending radius (loaded): 20 × D
- Temperature range (storage): –20 °C to +70 °C
- Temperature range (operation): –20 °C to +70 °C
Tests/Standards:
- Tensile test IEC 60794-1-2-E1: 150 N, 1 min, reversible damping change (△α), no damage.
- Crush test IEC 60794-1-2-E3: 500 N, 5 min, 3 repetitions, reversible damping change, no damage.
- Impact test IEC 60794-1-2-E4: 1 J, bending radius = 300 mm, 3 repetitions, reversible change in damping, no damage.
- Repeated bending stress IEC 60794-1-2-E6: bending radius = 20 × D, 25 N, 25 cycles, reversible attenuation change, no damage.
- Temperature change test IEC 60794-1-2-F1: –20 °C to +60 °C, 8 h per cycle, △α ≤ 0.10 dB/km, no damage.
Downloads
No downloads available
Data sheet & tender specification
For download of data sheet and tender specification please configurate the product in the section below and download via the symbol
Variants
| Cable diameter | Fiber count | Weight | Fiber diameter with coating | Order ref. | Article no. | |
|---|---|---|---|---|---|---|

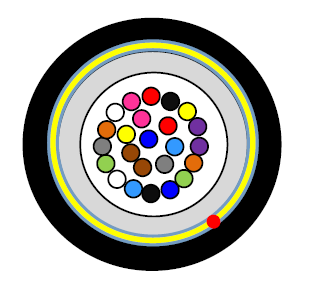

| 3,7 | 24 | 12 kg/km | 250 µm | 2LINE-CBL-AU-Mikro-24-A1-d3,7 | TBD1-Mikro |  |

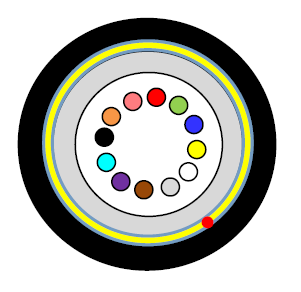

| 2,5 | 12 | 8 kg/km | 250 µm | 2LINE- CBL-AU-Mikro-12-A1-d2.5 | TBD2-Mikro | |
| 2,5 | 6 | 5 kg/km | 250 µm | 2LINE- CBL-AU-Mikro-6-A1-d2.5 | TBD3-Mikro | |
| 2,5 | 4 | 5 kg/km | 250 µm | 2LINE- CBL-AU-Mikro-4-A1-d2.5 | TBD4-Mikro | |
