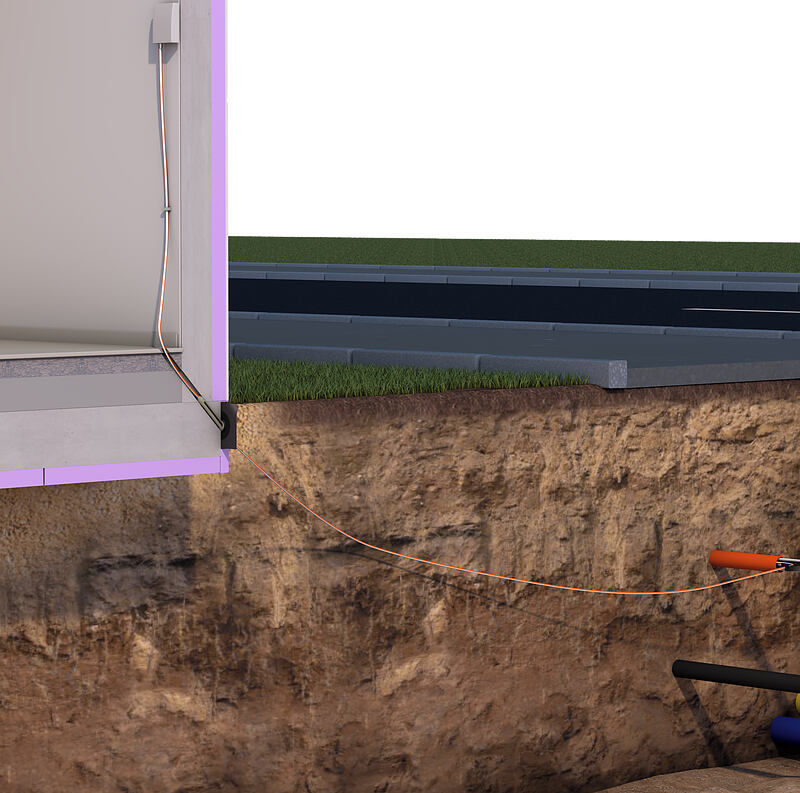

Membrane injection system
for buildings without a basement
2LINE MIS25 PRO
- controlled RESINATOR resin discharge thanks to proven membrane injection system
- tool-free assembly with RESINATOR double syringe
- horizontal or inclined installation up to 45° inclination
For reliable sealing of fibre optic cables. For installation in all standard wall types to DIN 18533 W1.1-E, W1.2-E, W2.1-E and waterproof concrete to DIN 1045. Includes 2-component resin RESINATOR.
Facts
Material:
- Waterproof concrete stress class 2, Waterproof concrete stress class 1
- Membrane sleeve: TPE
- Foil flange: Aluminium-plastic composite foil with butyl rubber
- Wall terminator element: PCFR
Advantages:
- Sealing in all common wall types (DIN 18533/WU concrete)
- Minimum RESINATOR resin quantity thanks to adhesive collar
- Small opening diameter Øi 25 mm
- Quick to assemble in just a few minutes
Scope of delivery:
- 1 piece of 2LINE MIS25
- 1 piece of RESINATOR dual syringe, 25 ml
- 1 piece of wall terminator element
Dimensions:
- for drill holes Øi: 25 mm
- for wall thicknesses starting from 150 mm
Downloads
Brochures
- Brochure MIS25 (PDF, 615KB)
- Safety Data Sheet Resinator Comp. A (PDF, 426KB)
- Safety Data Sheet Resinator Comp. B (PDF, 535KB)
Assembly instructions
Test reports
- Prüfbericht MIS25 1x6-13 PRO en (PDF, 972KB)
- Sicherheitsdatenblatt Polyol (PDF, 250KB)
- Sicherheitsdatenblatt Isocyanat (PDF, 279KB)
Data sheet & tender specification
For download of data sheet and tender specification please configurate the product in the section below and download via the symbol
Variants
| Number of cables/medium | Suitable for medium pipe OD (mm) | Order ref. | Article no. | |
|---|---|---|---|---|
| 1 | 6-13 | 2LINE MIS25 1x6-13 PRO | 3030477964 |  |
| 2 | 7-10 | 2LINE MIS25 2x7-10 PRO | 3030564551 | |
