2LINE Network Distributor NVt 48

Fibre optic network distributor

2LINE NVt 48

2LINE Network Distributor NVt 48 - Fibre optic network distributor

Article no.: 22141

  • Use as passive network distributor for GPON and point-to-point (PtP) technology
  • Splice connections between all fibers possible (any-to-any)
  • Two separate areas for fiber optic cassettes in the door and microducts in the housing
The 2LINE NVT is a passive distribution point in the FTTx fibre optic network. It offers an orderly tube, cable and splice management and thus supports the requirements of modern fibre optic networks.
2LINE Network Distributor NVt 48 - Fibre optic network distributor

Facts

Advantages:

  • Housing can be replaced modularly in case of damage
  • Possibility of storing excess cable lengths (loose tubes or house connection cables)
  • Flexible micro cable fixation from 2,3mm - 4,6mm (optional with 1.2mm to 2,5mm)
  • Cassette base for the 2LINE E&MMS cassette system
  • Use of E&MMS cassettes suitable for splitters
  • Transverse routing of the optic fibre from cassette block to cassette block
  • Use as passive network distributor for GPON and point-to-point (PtP) technology

Scope of delivery:

  • 1 pc. 2LINE NVt 48
  • Splice cassette system 1-row with max. 72 locking places for up to 864 crimp splice or 864 shrink splice protection trays

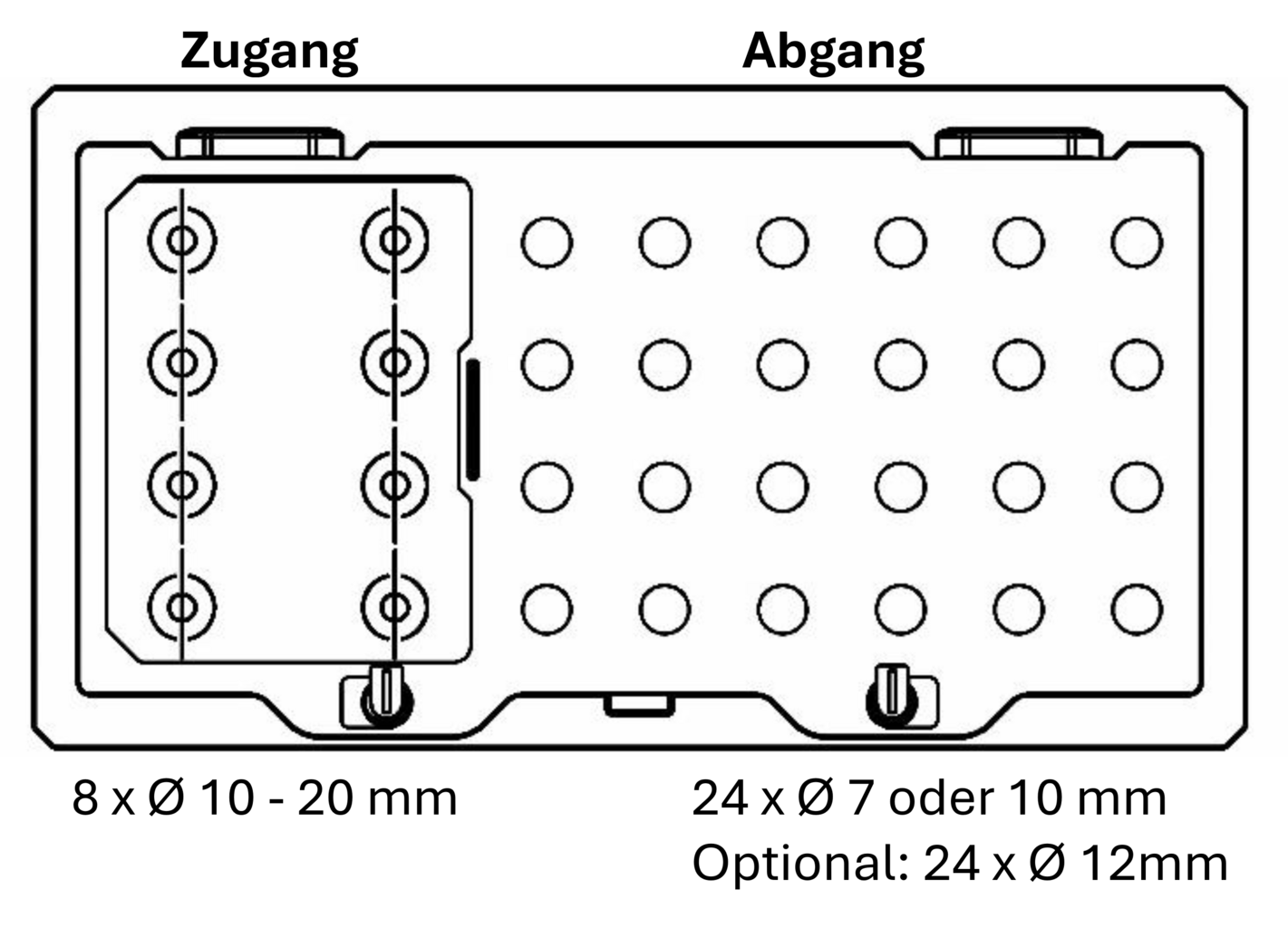

  • Sealed base plate with draught excluder for outlet area

Dimensions:

  • Housing incl. base HxWxD[mm]: 1635x308x215

Properties:

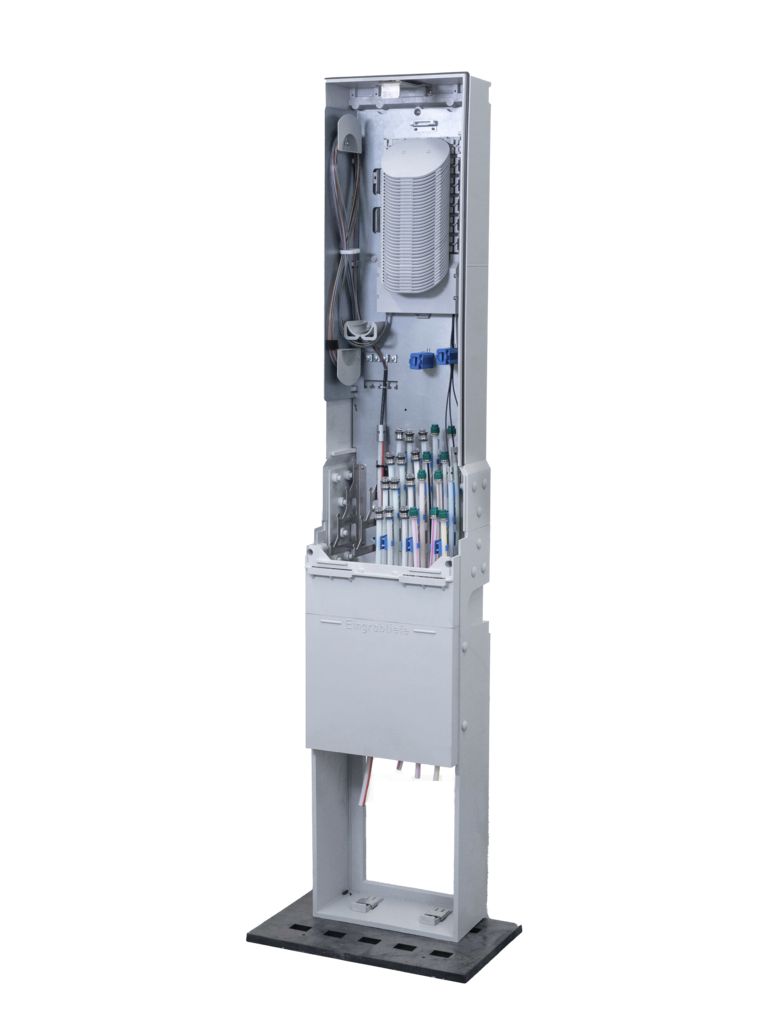

  • Interior fittings swing frame with E&MMS cassette system and fibre management
  • Inner rear panel for tube and cable management with cable excess length storage
  • Fixation of incoming cables with central element support
  • Excess length deposit of unused or uncut loose tubes (loop function)
  • Excess length storage of outgoing cables
  • Reserve storage for loose tubes in the event of faulty splices
  • Transfer and interception of cables in the splice area
  • Protected routing of the loose tubes to the splicing area
  • Integration of splitter possible

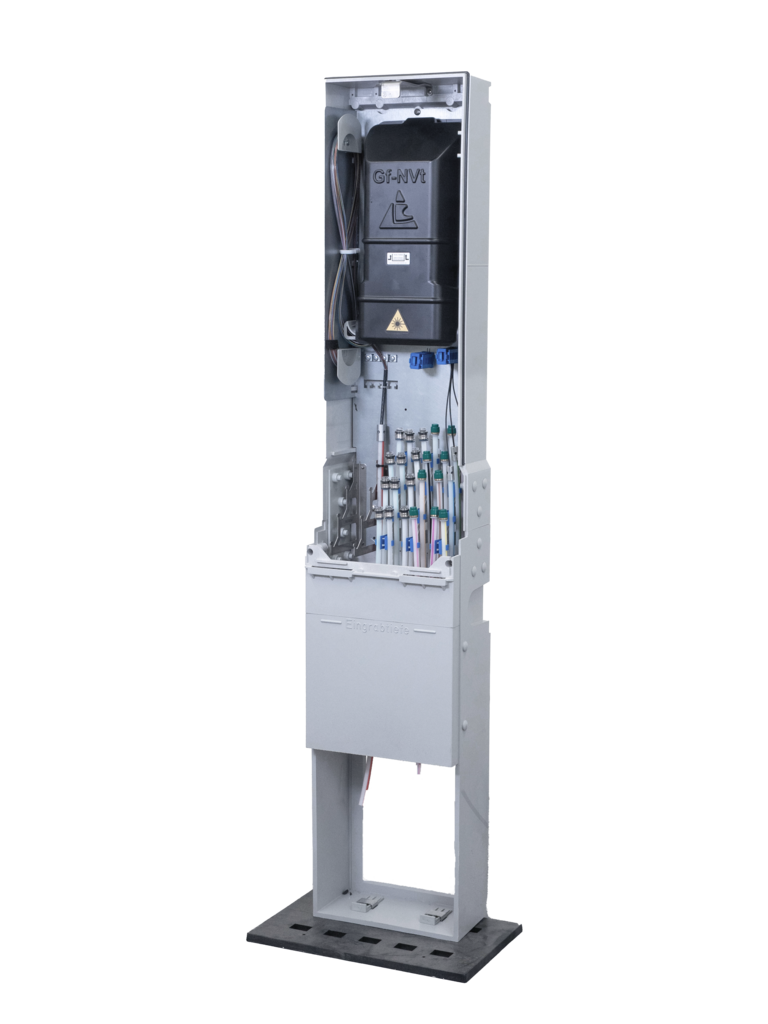

  • Hood with pivoted lever, prepared for installation of two half profile cylinder
  • Base with removable front flap
  • Base with height adjustment and base plate
  • Color: RAL7038
  • Weight: approx. 49 kg

Tests/Standards:

  • Environmental protection class IP54
  • Security level breakage resistance (according to DIN 47609): T3

Variants

Order ref.Article no.
NVt 242LINE NVt 2422141
