2LINE Network Distributor NVt 24

Facts

Advantages:

• Housing can be replaced modularly in case of damage
• Possibility of storing excess cable lengths (loose tubes or house connection cables)
• Flexible micro cable fixation from 2,3mm - 4,6mm (optional with 1.2mm to 2,5mm)
• Cassette base for the 2LINE EMMS cassette system
• Use of E&MMS cassettes suitable for splitters
• Transverse routing of the optic fibre from cassette block to cassette block
• Use as passive network distributor for GPON and point-to-point (PtP) technology

Scope of delivery:

• 1 pc. 2LINE NVt 24
• Splice cassette system 1-row with max. 36 locking places for up to 432 crimp splice or 432 shrink splice protection trays

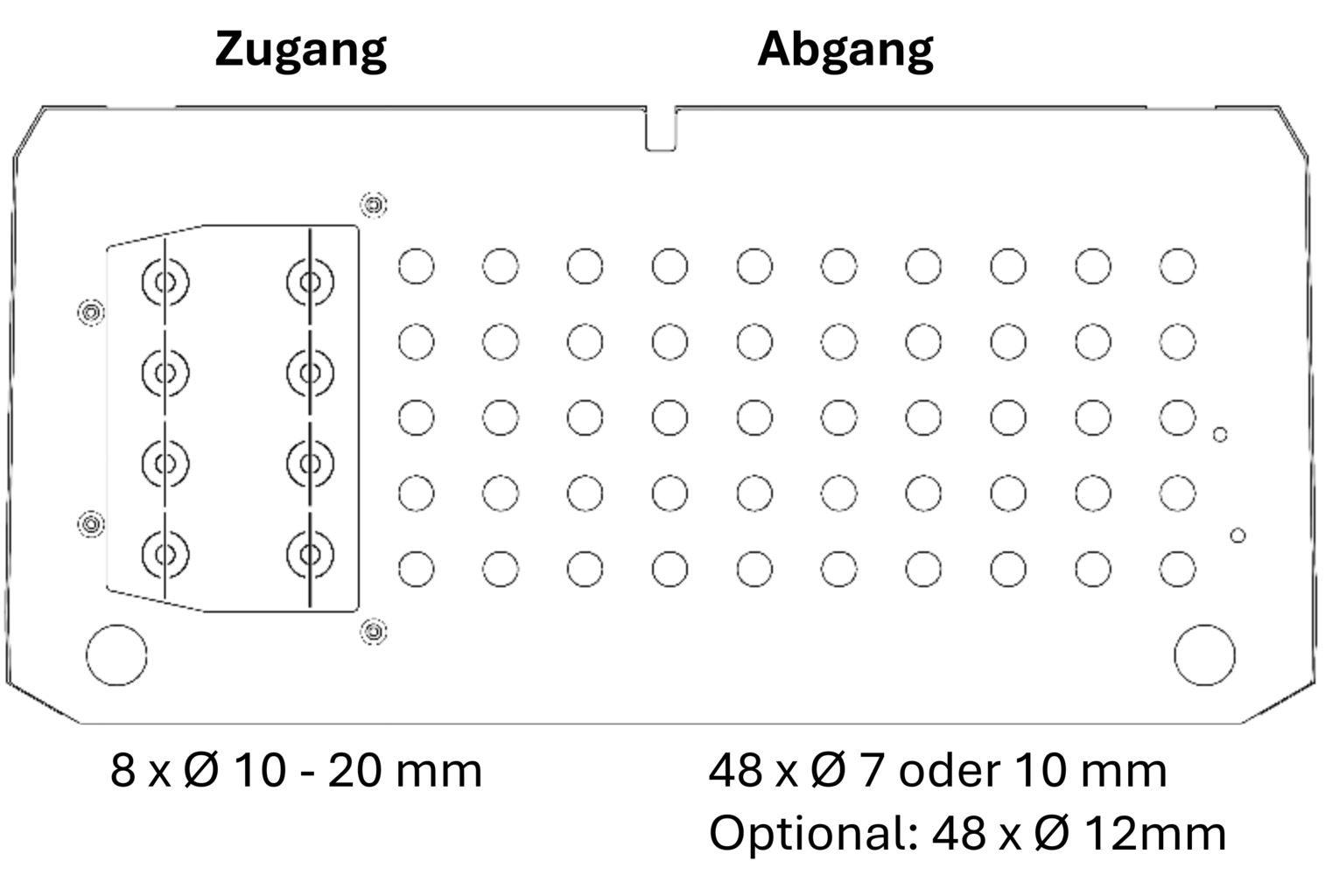

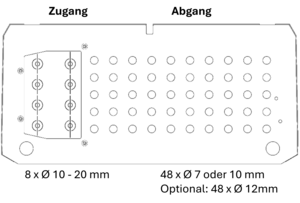

• Sealed base plate with draught excluder for outlet area

Dimensions:

• Housing incl. base HxWxD[mm]: 1635x308x215

Properties:

• Inner rear panel for tube and cable management with cable excess length storage
• Fixation of incoming cables with central element support
• Excess length deposit of unused or uncut loose tubes (loop function)
• Excess length storage of outgoing cables
• Transfer and interception of cables in the splice area
• Protected routing of the loose tubes to the splicing area
• Integration of splitter possible
• Hood with pivoted lever, prepared for installation of two half profile cylinder
• Plinth with removable front flap
• Color: RAL7038
• Weight: approx. 24 kg

Tests/Standards:

• Environmental protection class IP54
• Security level Intrusion resistance: Tested in accordance with RC2 DIN EN 1627
