2LINE Network Distributor NVt 96

Facts

Advantages:

• For 96 microtubes with Ø 7 mm or Ø 10 mm (mixture possible)
• Housing can be replaced modularly in case of damage
• Introduction of complete tube bundles in the 2LINE NVt
• Possibility of storing excess cable lengths (loose tubes or house connection cables)
• Flexible micro cable fixation from 1,5mm - 4,6mm

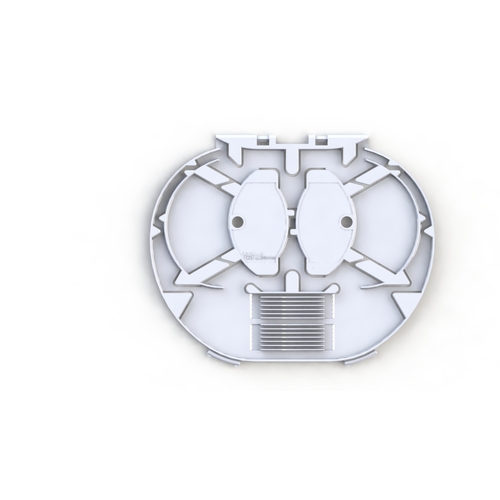

• Cassette base for the 2LINE E&MMS cassette system
• Use of E&MMS cassettes suitable for splitters
• Transverse routing of the optic fibre from cassette block to cassette block
• Use as passive network distributor for GPON and point-to-point (PtP) technology

Scope of delivery:

• 1 pc. 2LINE NVt 96
• Splice cassette system 2-row with max.144 locking places for up to 1.728 crimp splice or 1.728 shrink splice protection trays
• Sealed base plate with draught excluder for outlet area

Dimensions:

• Housing incl. base HxWxD[mm]: 2110x775x340

Properties:

• Inner rear panel for tube and cable management with cable excess length storage
• Fixation of incoming cables with central element support
• Excess length deposit of unused or uncut loose tubes (loop function)
• Excess length storage of outgoing cables
• Reserve storage for loose tubes in the event of faulty splices
• Transfer and interception of cables in the splice area
• Protected routing of the loose tubes to the splicing area
• Integration of splitter possible
• Door with pivoted lever, prepared for installation of two half profile cylinder
• Plinth with removable front flap and C-rail for fixing the tube assemblies

Tests/Standards:

• Environmental protection class IP54
• Impact resistance class IP54
