2LINE Patch cord

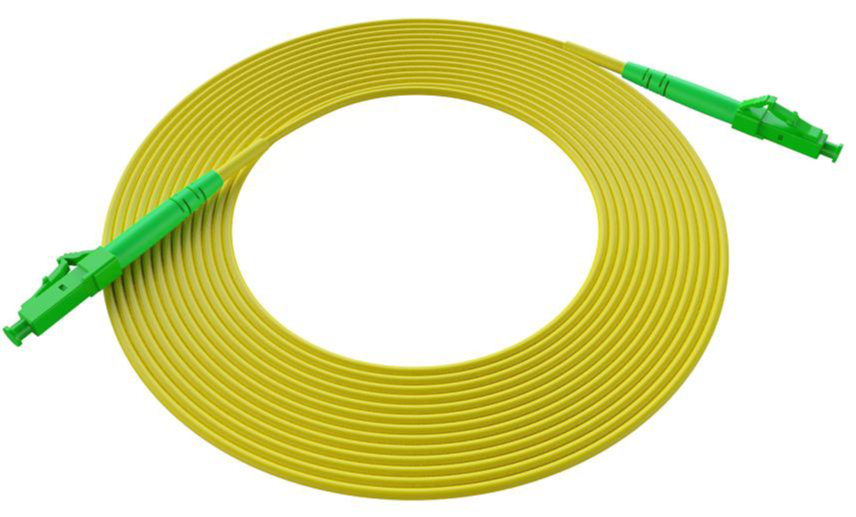

2LINE Patch cord LC/APC-LC/APC
- Connector Type: LC/APC – LC/APC
- Ready for plug-and-play installation
Facts
Properties:
- Fiber Type: G.657.A1 Singlemode Fiber
- Outer Jacket: LSZH (Low Smoke Zero Halogen)
- Minimum Bend Radius (Static): 10 × Cable Diameter
- Minimum Bend Radius (Dynamic): 20 × Cable Diameter
- Cable Type: Simplex
- Cable Diameter: 1.8 mm
- Insertion Loss: ≤ 0.25 dB (typical 0.12 dB)
- Return Loss: ≥ 60 dB
- Tensile Strength (Short-Term): 200 N
- High Mechanical Durability (≥ 500 mating cycles)
Tests/Standards:
- Mechanical Standard: IEC 60794
- Temperature Standard: IEC 60794-1-2-F1
- Tensile Strength (IEC 60794-1-E1): Short-term 200 N / Long-term 100 N
- Crush Resistance (IEC 60794-1-E3): Short-term 500 N/100 mm / Long-term 100 N/100 mm
- Impact Resistance (IEC 60794-1-E4): No visible changes after testing
- Repeated Bending (IEC 60794-1-E6): Passed
- Torsion (IEC 60794-1-E7): Passed
- Cable Bending Test (IEC 60794-1-E11): Passed
Downloads
No downloads available
Data sheet & tender specification
For download of data sheet and tender specification please configurate the product in the section below and download via the symbol
Variants
| Coat color | Length [m] | Order ref. | Article no. | |
|---|---|---|---|---|
| gelb | 0,5 | 2LINE- PKA-L1B-l0,5-A1-d1,8 | TBD1-PKA |  |
| gelb | 1,0 | 2LINE- PKA-L1B-l1,0-A1-d1,8 | TBD2-PKA | |
| gelb | 2,0 | 2LINE- PKA-L1B-l2,0-A1-d1,8 | TBD3-PKA | |
| gelb | 3,0 | 2LINE- PKA-L1B-l3,0-A1-d1,8 | TBD4-PKA | |
| gelb | 5,0 | 2LINE- PKA-L1B-l5,0-A1-d1,8 | TBD5-PKA | |
