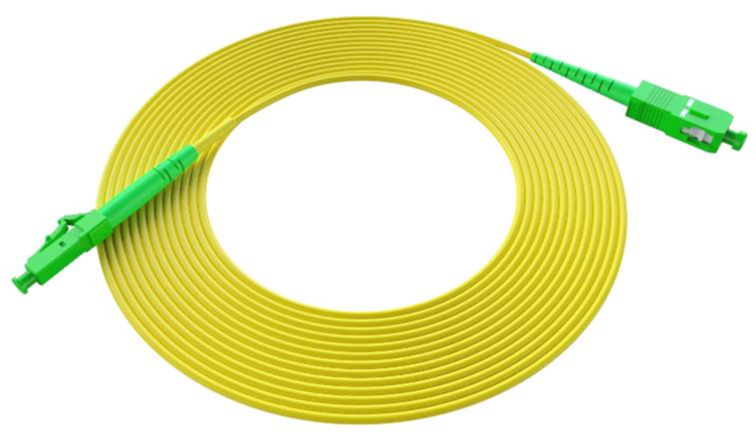

Fibre optic cable2LINE Patch cord SC/APC-LC/APC

2LINE Patch cord

2LINE Patch cord SC/APC-LC/APC

2LINE Patch cord -

Connector Type: LC/APC – LC/APC
Ready for plug-and-play installation

2LINE Patch cord -

Facts

Properties:

Fiber Type: G.657.A1 Singlemode Fiber
Outer Jacket: LSZH (Low Smoke Zero Halogen)
Minimum Bend Radius (Static): 10 × Cable Diameter
Minimum Bend Radius (Dynamic): 20 × Cable Diameter
Cable Type: Simplex
Cable Diameter: 1.8 mm
Insertion Loss: ≤ 0.25 dB (typical 0.12 dB)
Return Loss: ≥ 60 dB
Tensile Strength (Short-Term): 200 N
High Mechanical Durability (≥ 500 mating cycles)

Tests/Standards:

Mechanical Standard: IEC 60794
Temperature Standard: IEC 60794-1-2-F1
Tensile Strength (IEC 60794-1-E1): Short-term 200 N / Long-term 100 N
Crush Resistance (IEC 60794-1-E3): Short-term 500 N/100 mm / Long-term 100 N/100 mm
Impact Resistance (IEC 60794-1-E4): No visible changes after testing
Repeated Bending (IEC 60794-1-E6): Passed
Torsion (IEC 60794-1-E7): Passed
Cable Bending Test (IEC 60794-1-E11): Passed

Downloads

No downloads available

Data sheet & tender specification

For download of data sheet and tender specification please configurate the product in the section below and download via the symbol

Variants

Coat color	Length [m]	Order ref.	Article no.
gelb	0,3	2LINE- PKA-S1B-L1B-l0,3-A1-d1,8	TBD6-PKA	Your download for the choosen variant: Datenblatt Download (.pdf) Tender specifications GAEB XML (.x81) GAEB 90 (.d81) Text view (.txt) Word (.docx) Quantity:
gelb	0,5	2LINE- PKA-S1B-L1B-l0,5-A1-d1,8	TBD7-PKA	Your download for the choosen variant: Datenblatt Download (.pdf) Tender specifications GAEB XML (.x81) GAEB 90 (.d81) Text view (.txt) Word (.docx) Quantity:
gelb	1,0	2LINE- PKA-S1B-L1B-l1,0-A1-d1,8	TBD8-PKA	Your download for the choosen variant: Datenblatt Download (.pdf) Tender specifications GAEB XML (.x81) GAEB 90 (.d81) Text view (.txt) Word (.docx) Quantity:
gelb	2,0	2LINE- PKA-S1B-L1B-l2,0-A1-d1,8	TBD9-PKA	Your download for the choosen variant: Datenblatt Download (.pdf) Tender specifications GAEB XML (.x81) GAEB 90 (.d81) Text view (.txt) Word (.docx) Quantity:
gelb	3,0	2LINE- PKA-S1B-L1B-l3,0-A1-d1,8	TBD10-PKA	Your download for the choosen variant: Datenblatt Download (.pdf) Tender specifications GAEB XML (.x81) GAEB 90 (.d81) Text view (.txt) Word (.docx) Quantity:
gelb	5,0	2LINE- PKA-S1B-L1B-l5,0-A1-d1,8	TBD11-PKA	Your download for the choosen variant: Datenblatt Download (.pdf) Tender specifications GAEB XML (.x81) GAEB 90 (.d81) Text view (.txt) Word (.docx) Quantity:
gelb	7,0	2LINE- PKA-S1B-L1B-l7,0-A1-d1,8	TBD12-PKA	Your download for the choosen variant: Datenblatt Download (.pdf) Tender specifications GAEB XML (.x81) GAEB 90 (.d81) Text view (.txt) Word (.docx) Quantity:
gelb	10,0	2LINE- PKA-S1B-L1B-l10,0-A1-d1,8	TBD13-PKA	Your download for the choosen variant: Datenblatt Download (.pdf) Tender specifications GAEB XML (.x81) GAEB 90 (.d81) Text view (.txt) Word (.docx) Quantity:
