2LINE SPM 19"
Splice/Patch Modules

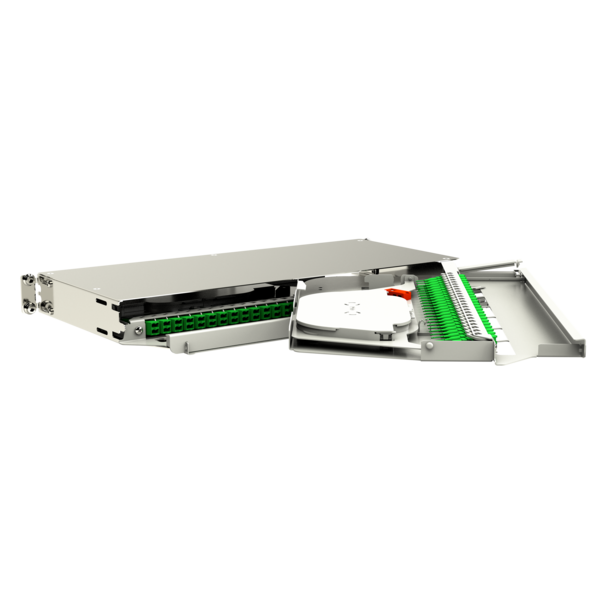

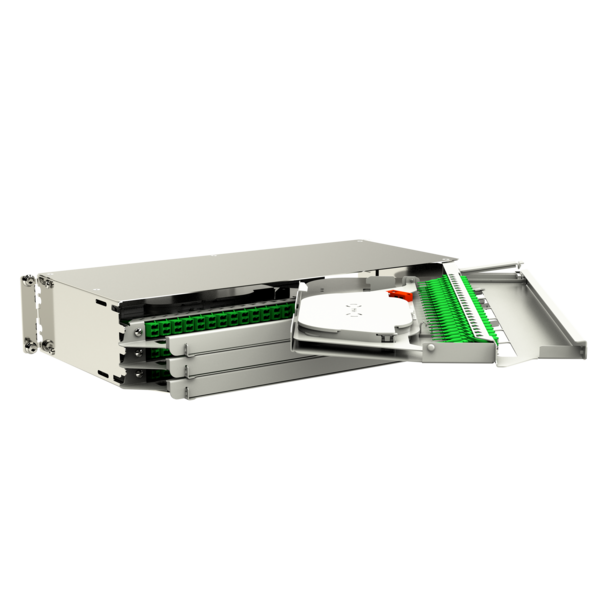

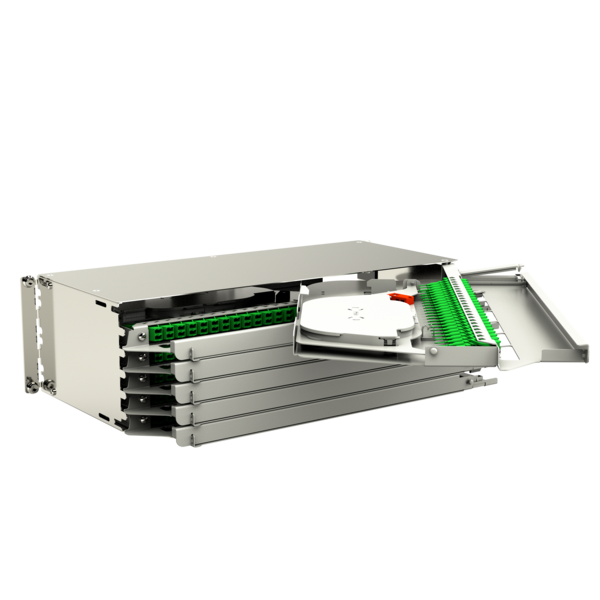

2LINE SPM 19"
- Swivel splice/patch modules pre-assembled with pigtails, couplings and protective tubes
- High packing density of modules (3U with 288 LC ports)
- Extremely installation-friendly thanks to fold-down splice cassettes, each with 24 fibers
The 2LINE Splice/Patch Modules are compact connection and termination solutions for our passive fibre optic network components such as the 2LINE ODF or the 2LINE MFC.
Facts
Advantages:
- Fold-down front panel serves as laser protection and allows for cleaning and measuring of pigtails
- Easy and self-explanatory assembly due to logical colour coding
- Printing and labelling according to standard or customer specifications
- Two swivel drawers per 1U
Scope of delivery:
- 1 pc. 2LINE SPM 19", preconfigured with pigtails and couplings
- Mounting hardware
Dimensions:
- Width: 445 mm
- Depth: 280 mm
- Heights: 1 U = 44 mm; 2 U = 88 mm; 3 U = 132 mm
Properties:
- Up to 96 LC/APC ports per unit of height (per U)
- Two swivel drawers, each with 24 LC APC duplex adapters
- Pigtail fibers optionally G.652 or G.657
- Rear or front mounting, each adjustable in steps of 20 mm
- Protected loose tube feed via Ø 10 mm corrugated tube for each swivel drawer
- Weight: approximately 4.5 kg
Tests/Standards:
- Plastic parts LSZH, flame-retardant UL94 V-0, UV stable
Downloads
No downloads available
Data sheet & tender specification
For download of data sheet and tender specification please configurate the product in the section below and download via the symbol
Variants
| HU | Drawers | Ports | Order ref. | Article no. | ||
|---|---|---|---|---|---|---|
| 1 | 2 | 96 | crimp | 2LINE-SPM-1HE-19-96-L1B-A1-CR | 22181 |  |
| 1 | 2 | 72 | crimp | 2LINE-SPM-1HE-19-72-L1B-A1-CR | 22182 | |
| 2 | 4 | 192 | crimp | 2LINE-SPM-2HE-19-192-L1B-A1-CR | 22183 | |
| 2 | 4 | 144 | crimp | 2LINE-SPM-2HE-19-144-L1B-A1-CR | 22184 | |
| 3 | 6 | 288 | crimp | 2LINE-SPM-3HE-19-288-L1B-A1-CR | 22185 | |
| 3 | 6 | 216 | crimp | 2LINE-SPM-3HE-19-216-L1B-A1-CR | 22186 | |
