2LINE Athene KÜB

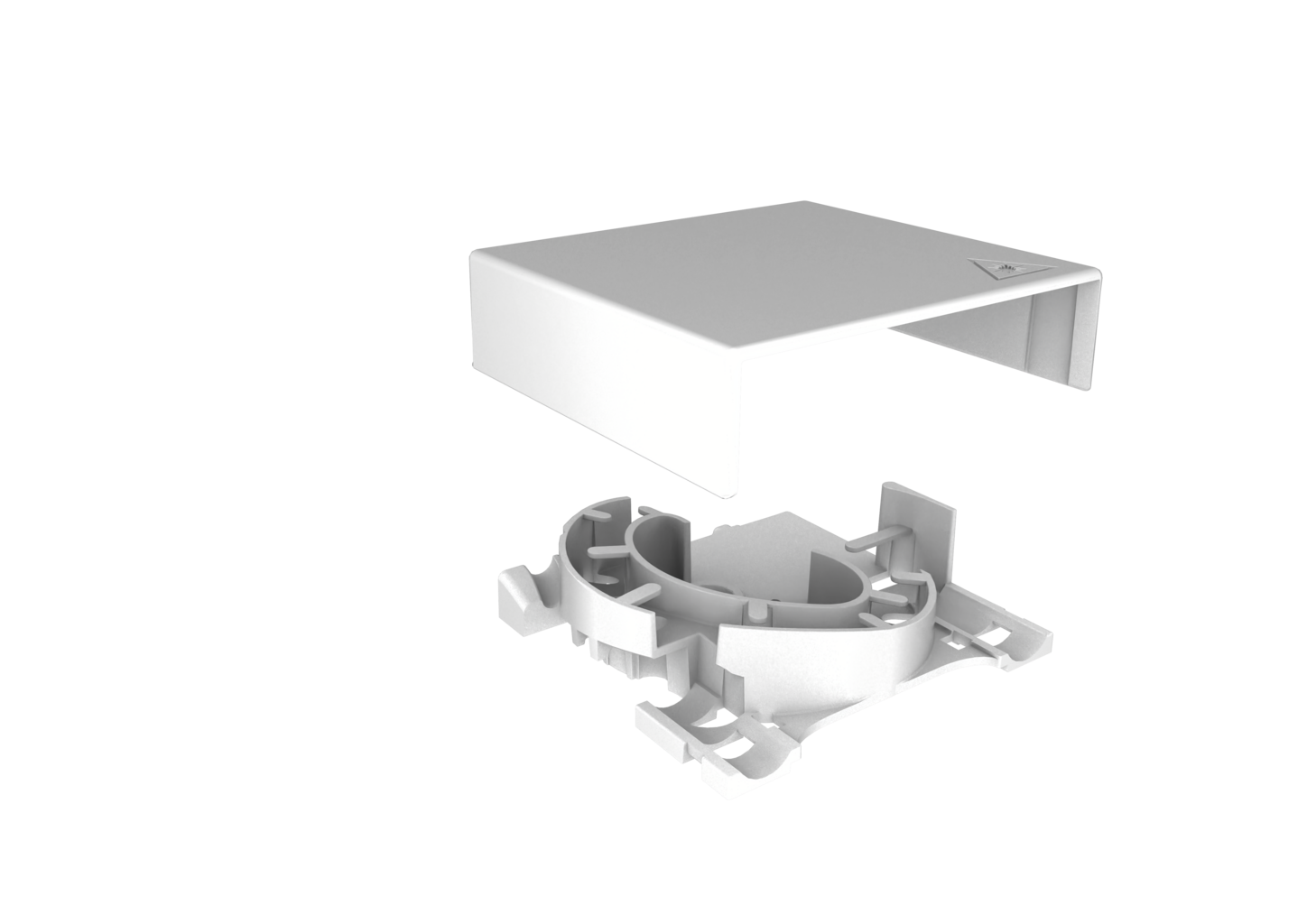

Cable overlength box
2LINE Athene KÜB
Article no.: 21073
- Can be used in combination with the 2LINE Athene BOX
- Excess length compensation of cascaded cable whips

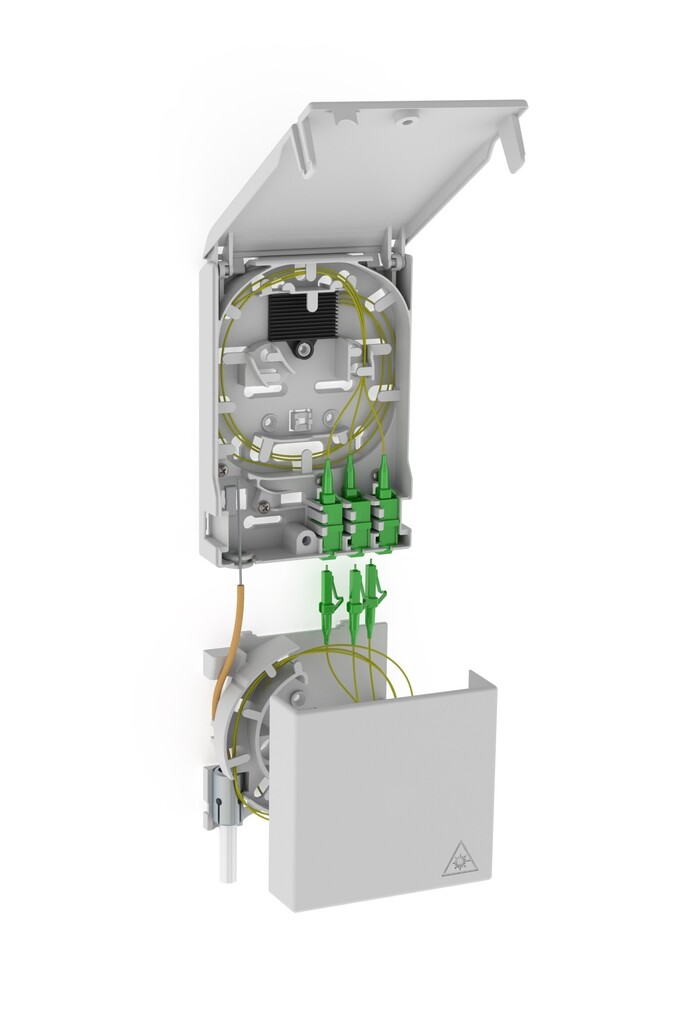

In combination with the 2LINE Athene BOX you can exploit all the advantages of modern in-house cabling.The 2LINE Athene KÜB enables you to accommodate excess length of cable assemblies, which are delivered cascaded for installation in empty conduits. Of course, it should be also ensured that the fibres are inserted and guided gently without bending below the prescribed radius.
Facts
Advantages:
- Used for depositing excess cable lengths
- Micro tube support of Ø5 /Ø7 /Ø10mm
- Fixation of gas/water stop (EZA)
- Fulfils the R30 bending radius
- Closure with self-locking
Scope of delivery:
- Cable ties
- Wall fixation material (Universal plugs and screws)
- Optional: customer logo
Dimensions:
- HxWxD[mm]: 90x96x27
Tests/Standards:
- Impact resistant IK07
- Self-extinguishing according to UL94 V0 and UV-resistant
Downloads
No downloads available
Data sheet
Tender specifications
Variants
| Dimension | Order ref. | Article no. | |
|---|---|---|---|
| 90x96x27 | 2LINE Athene KÜB | 2LINE Athene KÜB |   |
