2LINE Hermes BOX
Customer line termination
2LINE Hermes BOX
- Accommodates max. 6 adapters and 24 splices
- Storage capacity of 6x SC pigtails or 6x E2000 pigtails or 12x LC pigtails
- Flat and robust design for wall fixation

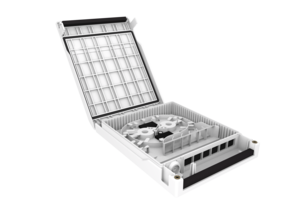

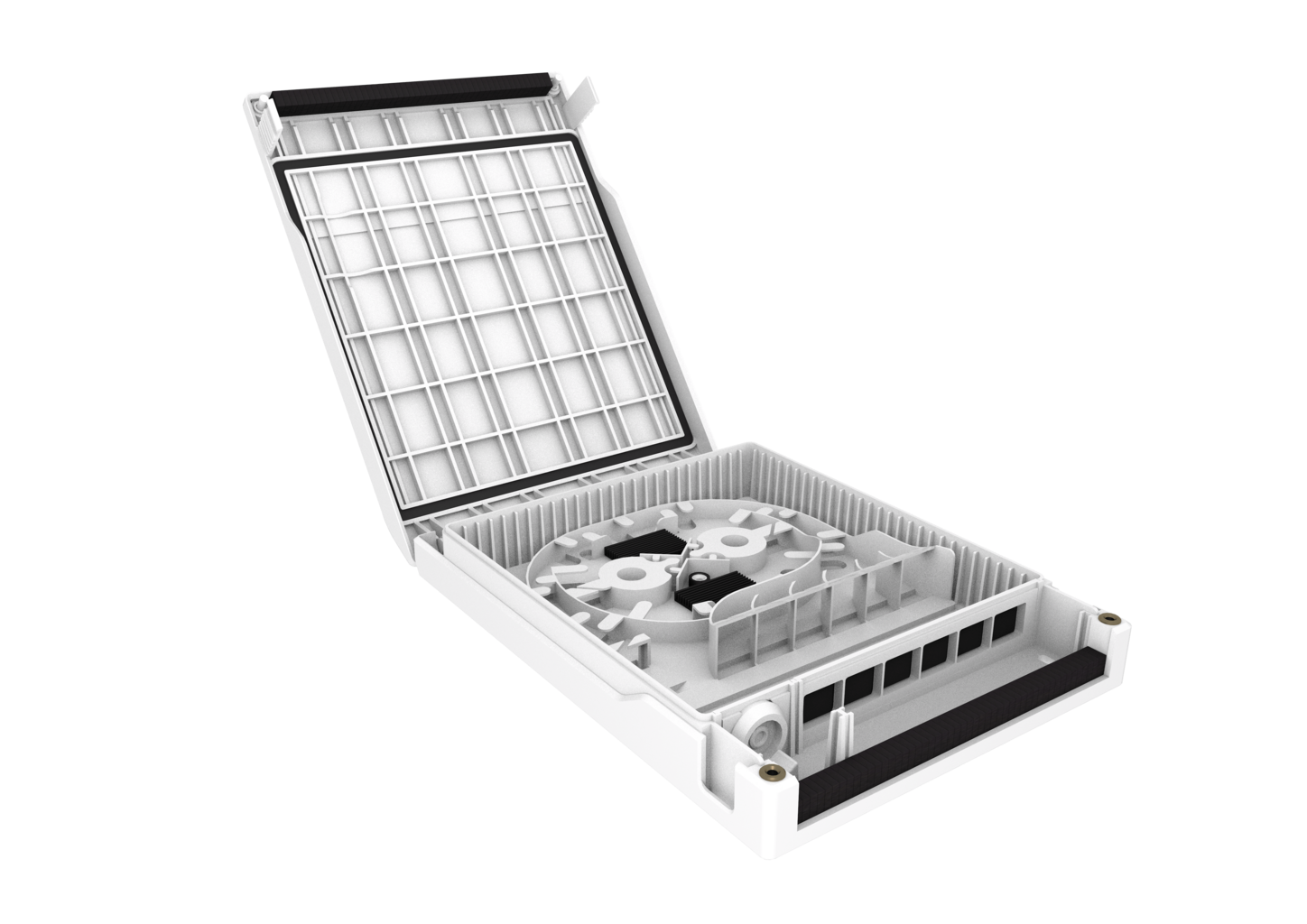

The 2LINE Hermes BOX is an optical fibre termination point for terminating the fibre in the building. All features and functions for a professional transfer and termination point of an FTTx network are represented in a robust plastic housing.
Facts
Advantages:

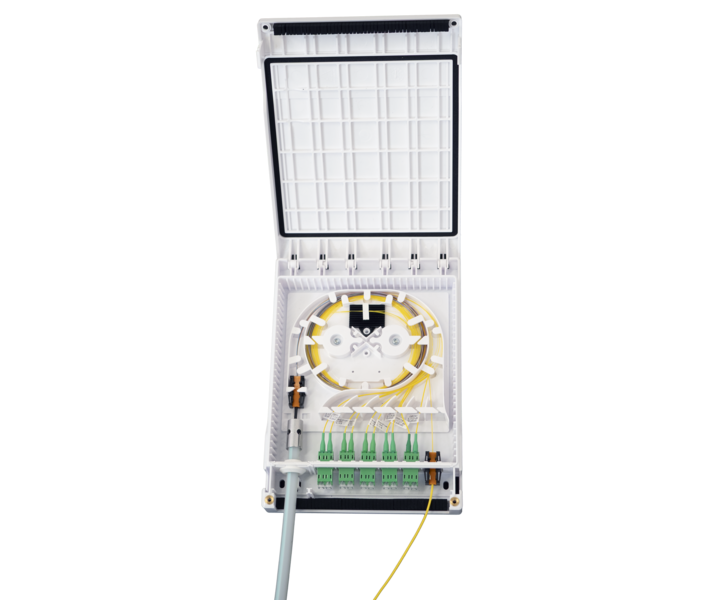

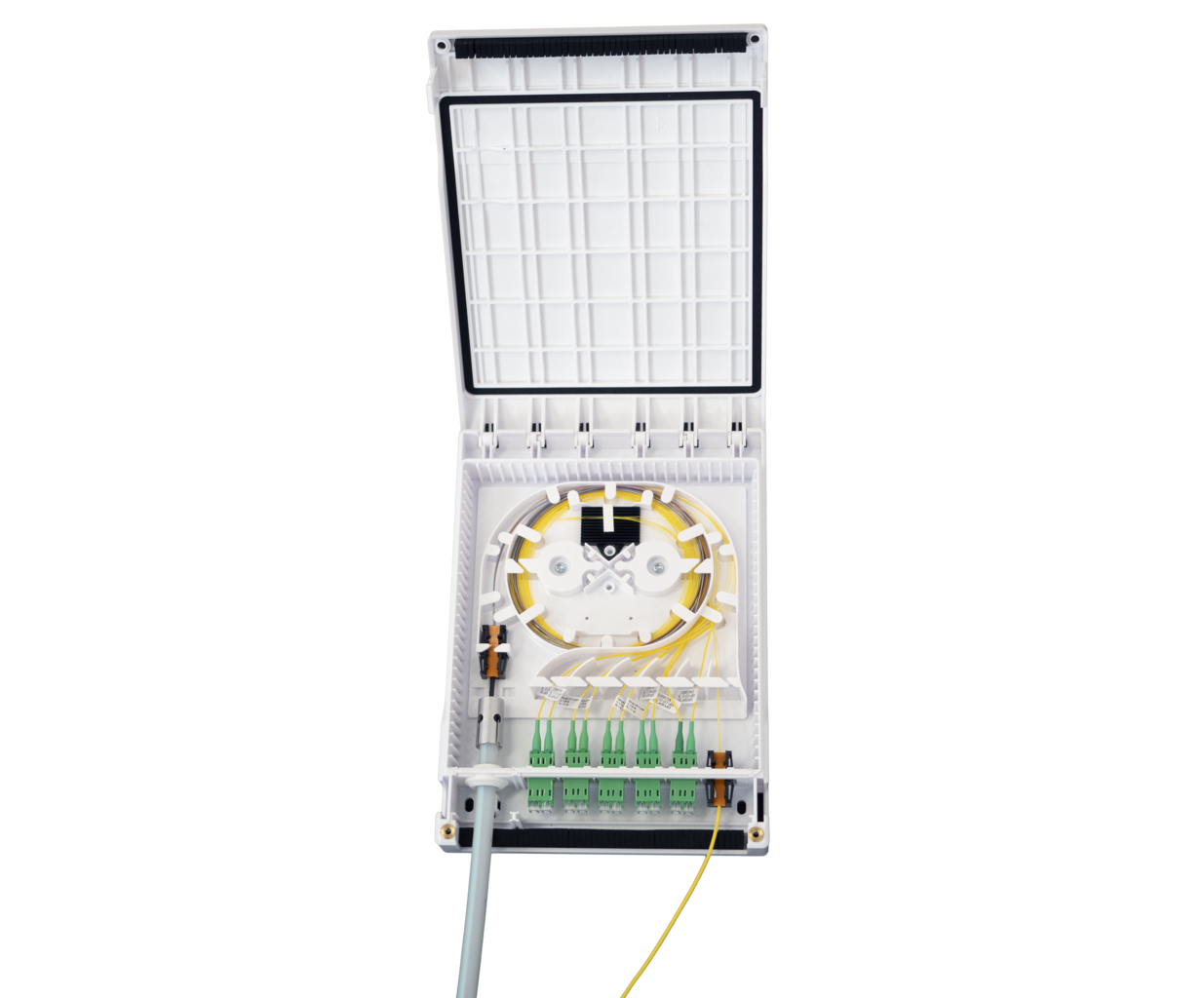

- Optic fibres are protected within the housing and guided with bending radius and the possibility to store excess fibre lengths
- Interchangeable splice holder for storing shrink or crimp splice protection elements
- Guided cable entry from below with sealing and integrated or additional cable strain relief
- Possibility of using commercially available single-pass seals in the housing
- Cover closure self-locking, grooved or Torx screw and sealable
- Cable/tube entry max. ø 12mm from below
- UV- and weather resistant
Scope of delivery:
- Wall fixation material

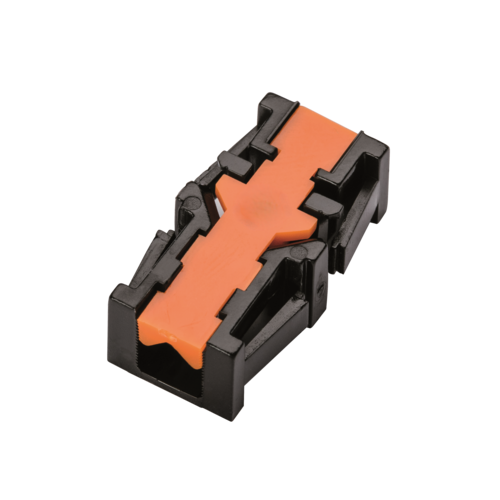

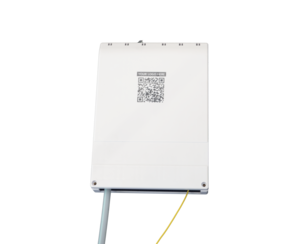

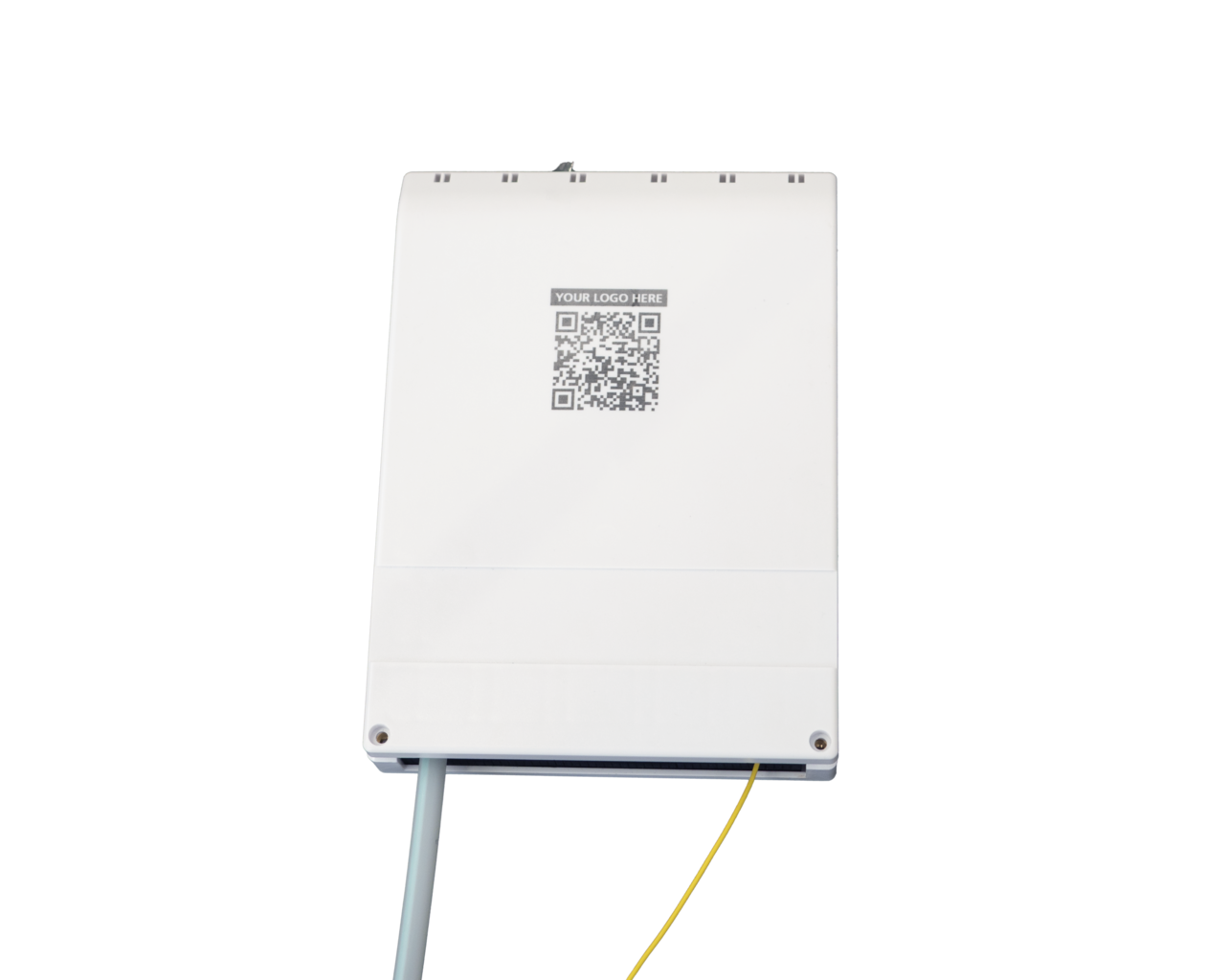

- Optional: Adapters and pigtails included, customer logo, 2LINE ZAF
Dimensions:
- HxWxD[mm]: 235x155x35
Material:
- Plastic, color RAL9003
Tests/Standards:
- Impact resistance class IP54 (for internal adapters)
- Impact resistance class IP20 (for external adapters)
- Fire resistance class UL94 V-0
Downloads
No downloads available
Data sheet & tender specification
For download of data sheet and tender specification please configurate the product in the section below and download via the symbol
Variants
| Item | Splice | Order ref. | Article no. | |
|---|---|---|---|---|
| Leergehäuse | Crimpspleißhalter | 2LINE-Hermes-C | 3030637234 |  |
| 6 Kupplungen LC/APC dx / 12 Pigtails LC/APC | Crimpspleißhalter | 2LINE-Hermes-6K12P-z-L1B-C | 3030637247 | |
| 6 Kupplungen LC/APC dx / 6 Pigtails SC/APC | Crimpspleißhalter | 2LINE-Hermes-6K6P-z-S1B-C | 3030637264 | |
| Leergehäuse | Schrumpfspleißhalter | 2LINE-Hermes-S | 3030637383 | |
| 6 Kupplungen LC/APC dx / 12 Pigtails LC/APC | Schrumpfspleißhalter | 2LINE-Hermes-6K12P-z-L1B-S | 3030637580 | |
| 6 Kupplungen SC/APC / 6 Pigtails SC/APC | Schrumpfspleißhalter | 2LINE-Hermes-6K6P-z-S1B-S | 3030637252 | |
