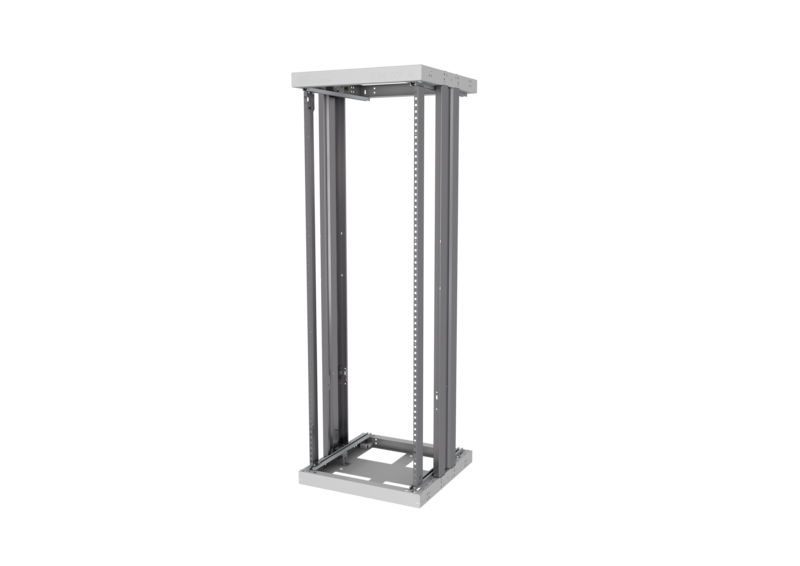

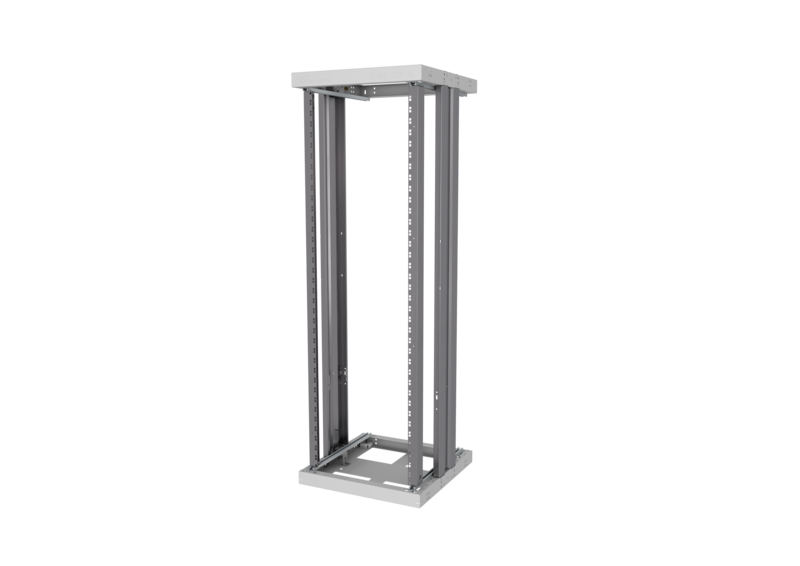

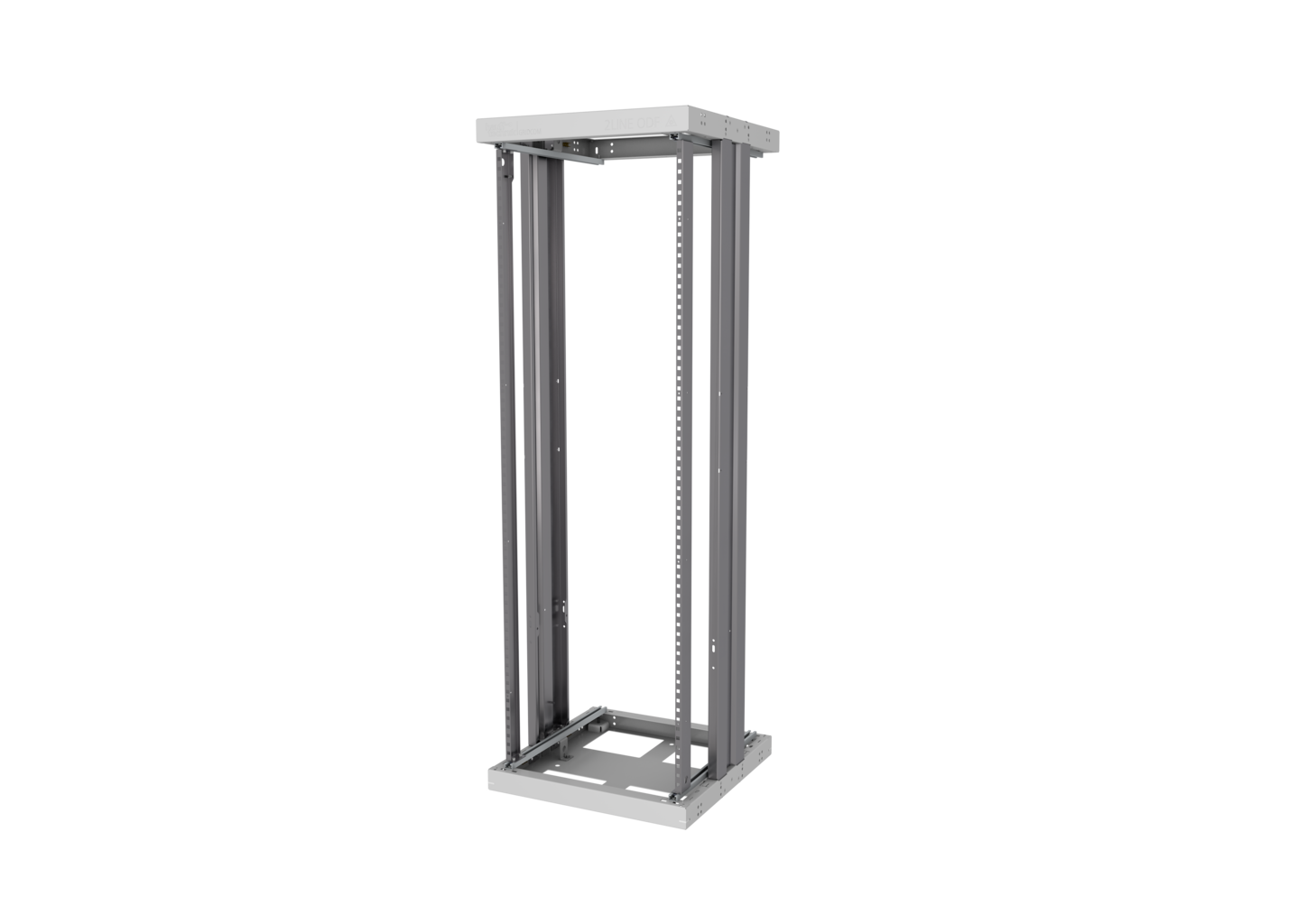

2LINE Optical Distribution Frame ODF 180 Active
Optical distribution frame
2LINE ODF 180 Active
- Distribution rack for active technology for installation of 19" technology with a storage capacity of up to 33U

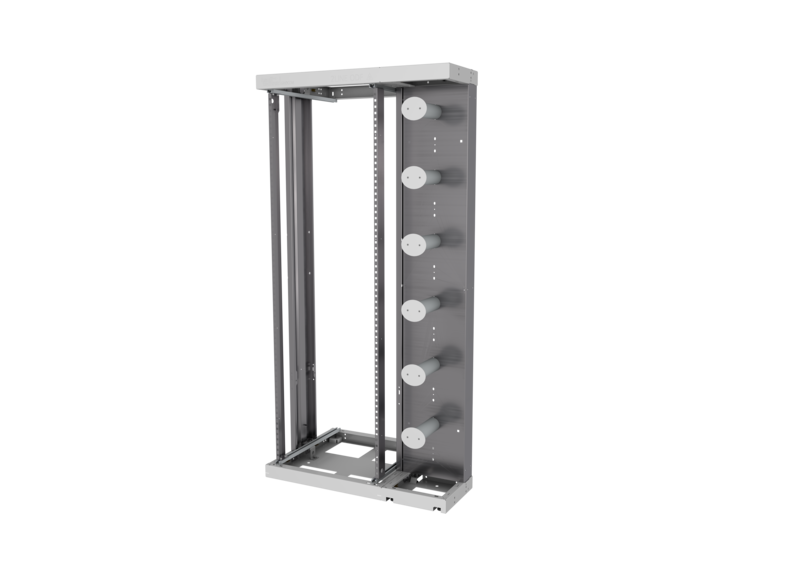

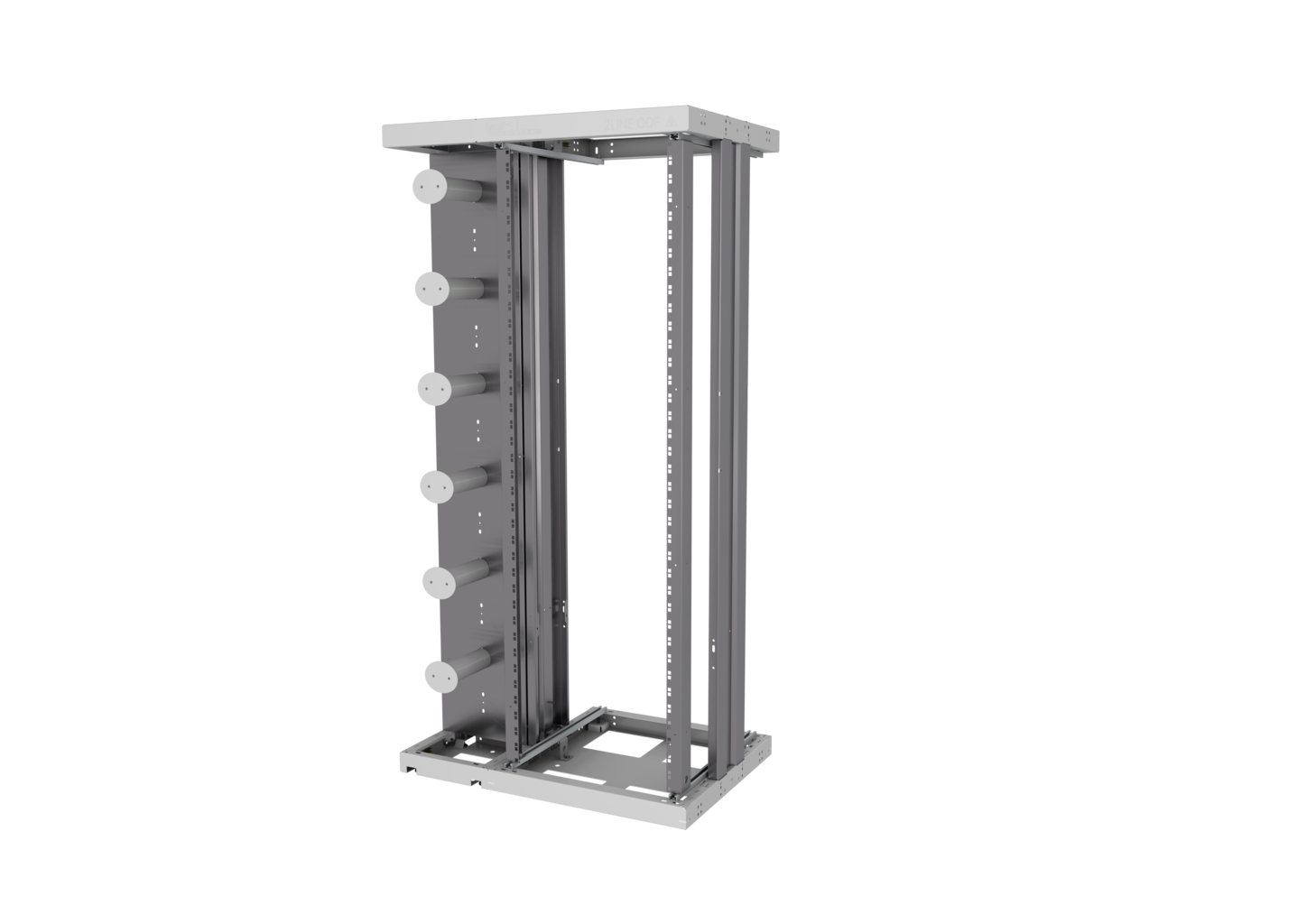

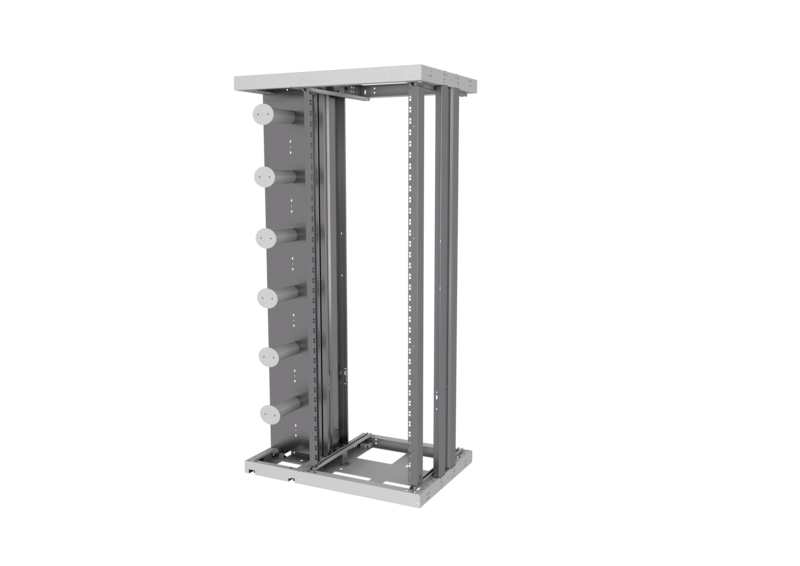

- Integrated patch cable routing
- Depth-adjustable 19" rails
The 2LINE ODF can not only be used as a passive distributor, but also as an active cabinet with integrated patch cable routing for the expansion of 19" or ETSI modules.
Facts
Advantages:
- Possibility of mirror-inverted fixation
- Fixation on the wall, on the ceiling, back to back or side by side
- Cable entry from above
- Grounding possibility
- Height-adjustable frame feet
Scope of delivery:
- 1 pc. 2LINE ODF 180 Active
- 1 pc. Assembly instruction
- 2LINE ODF door set, 2-piece with 3-point rod locking system, swivelling lever prepared for profile half cylinder (optional)
- 2LINE ODF side panel (optional)
- 2LINE Cable duct system top and bottom (optional)
- 2LINE Depth adapter for increasing the installation depth (optional)
Dimensions:
- HxWxD[mm]: 1800x900x300
Material:
- Stainless steel, steel galvanized and powder coated in RAL7035, plastic
Downloads
No downloads available
Data sheet & tender specification
For download of data sheet and tender specification please configurate the product in the section below and download via the symbol
Variants
| Dimension | Order ref. | Article no. | |
|---|---|---|---|
| 1800 | 2LINE-ODF-46HE-A-19-h1800-b600-t600-NN | 2LINE-ODF-46HE-A-19-h1800-b600-t600-NN |  |
| 1800 | 2LINE-ODF-A-ET-h1800-b600-t600-NN | 2LINE-ODF-A-ET-h1800-b600-t600-NN | |
