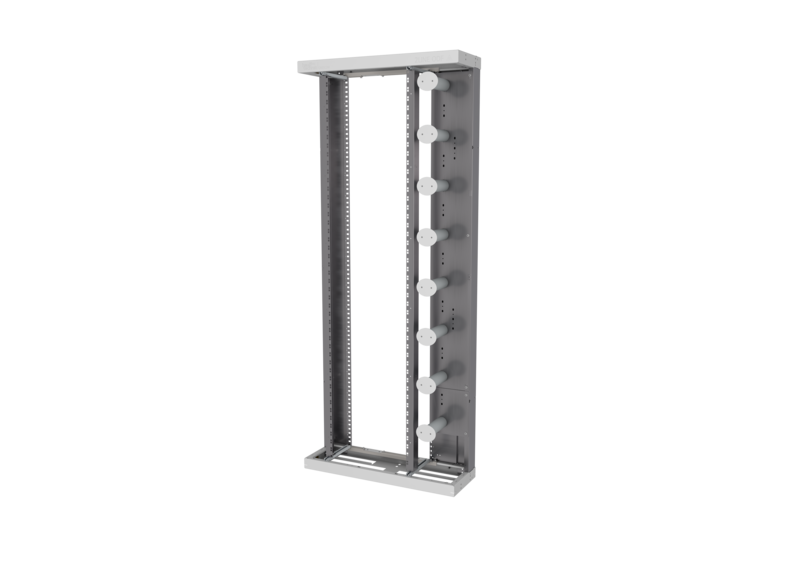

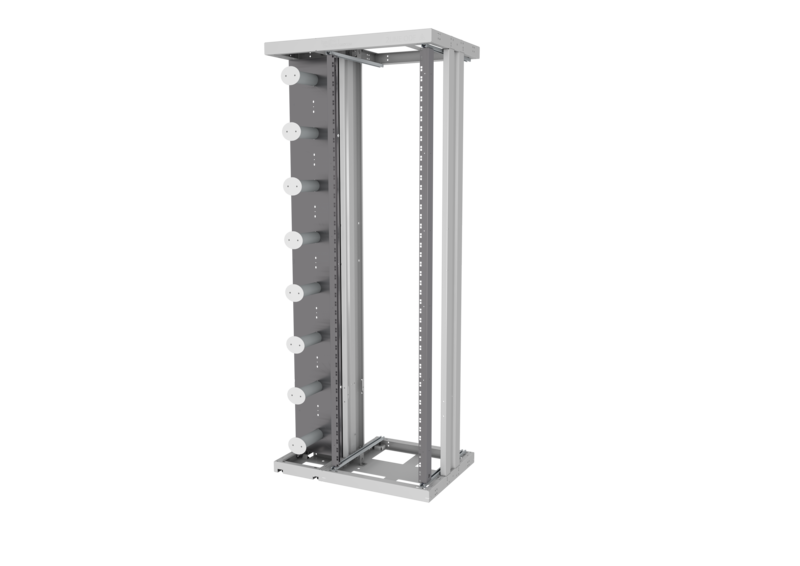

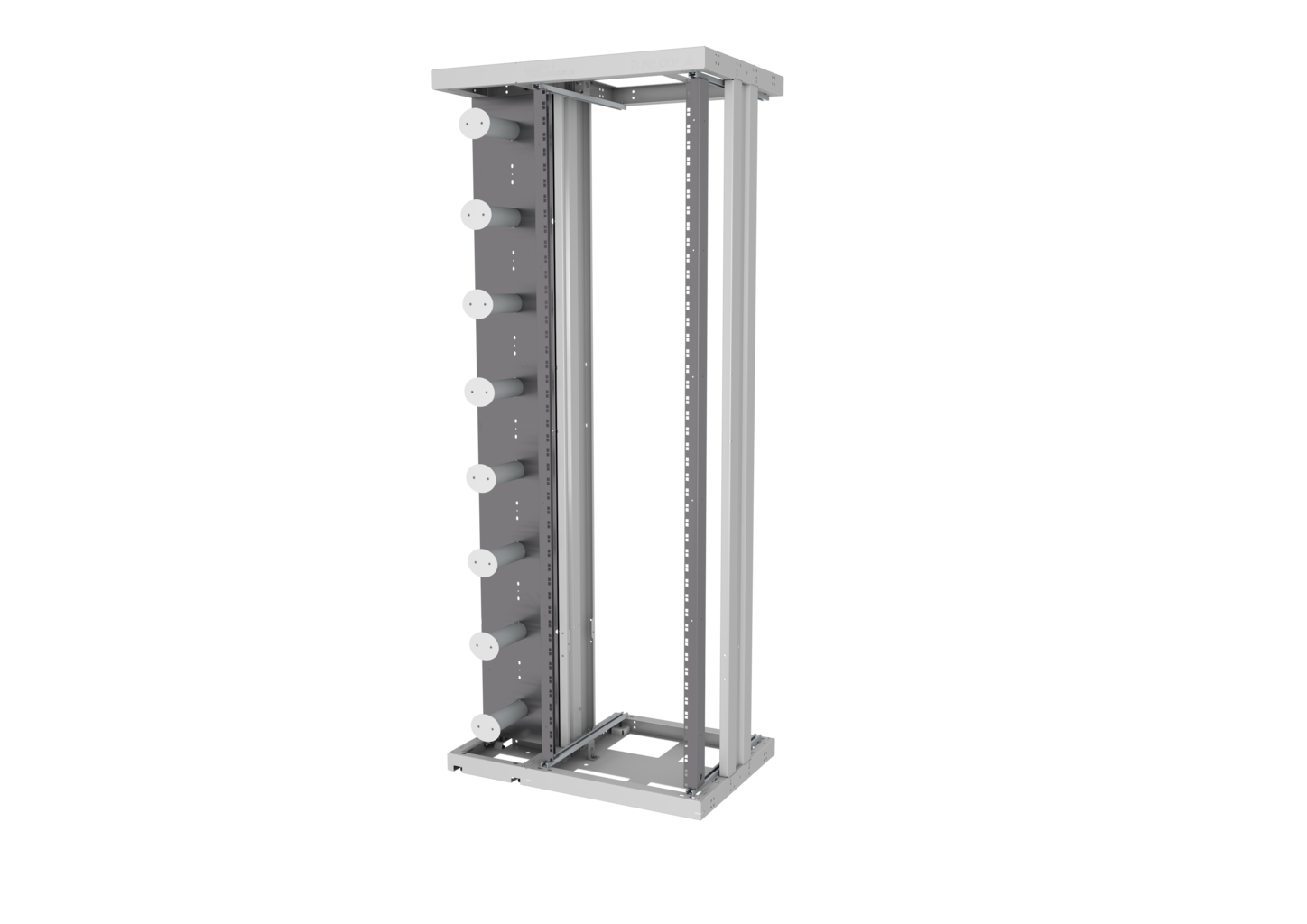

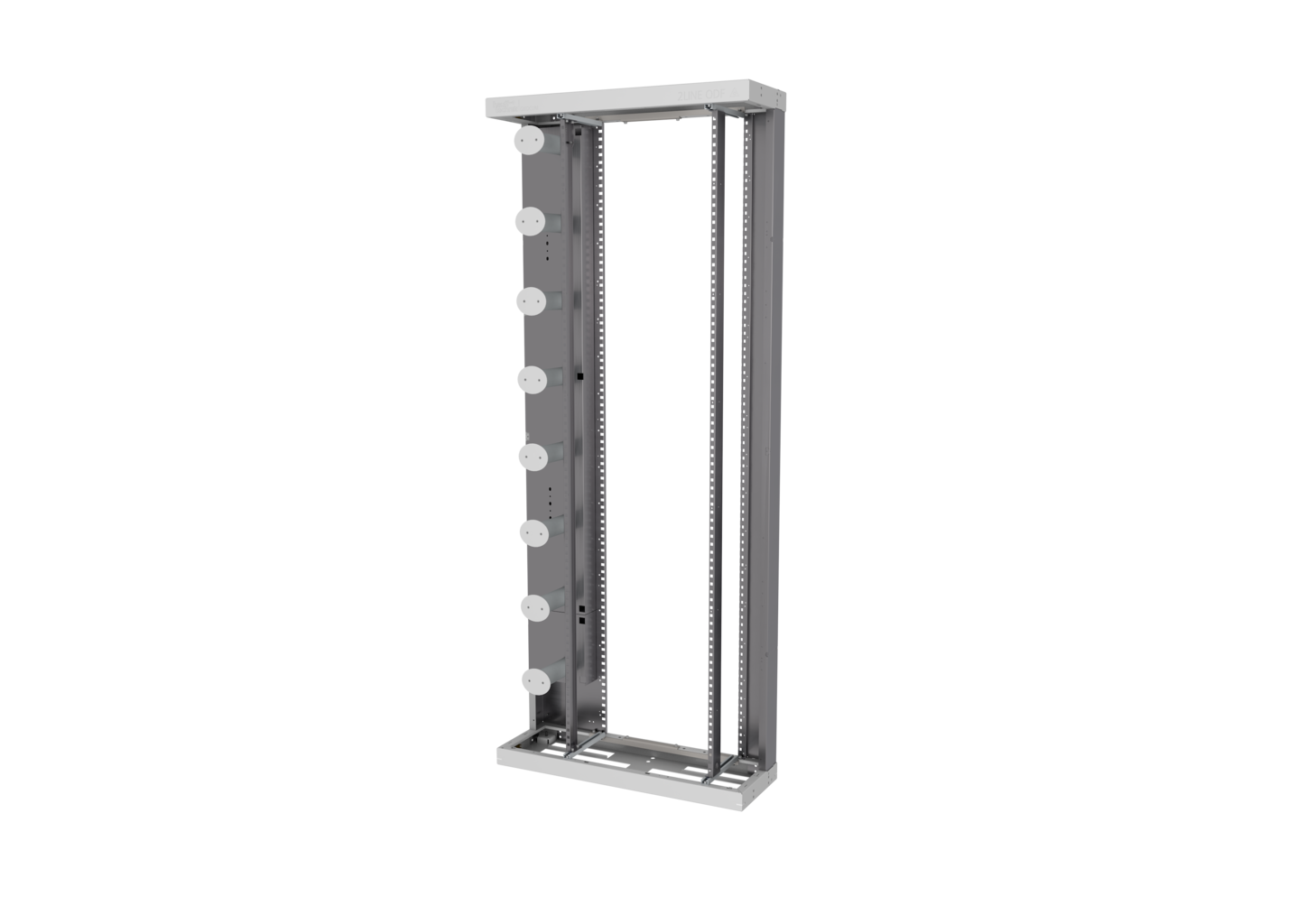

2LINE Optical Distribution Frame ODF 220 Active
Optical distribution frame

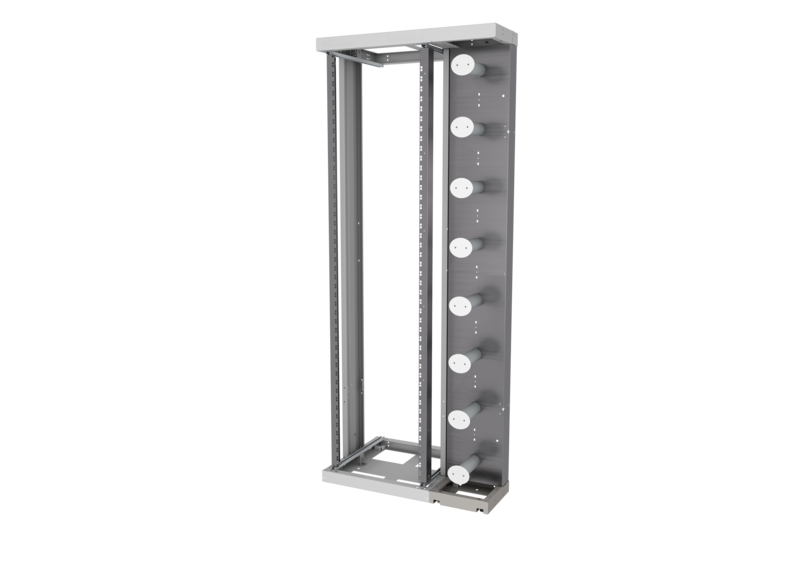

2LINE ODF 220 Active
- Distribution rack for active technology for installation of 19" technology with a storage capacity of up to 42U
- Integrated patch cable routing
- Depth-adjustable 19" rails
The 2LINE ODF can not only be used as a passive distributor, but also as an active cabinet with integrated patch cable routing for the expansion of 19" or ETSI modules.
Facts
Advantages:
- Possibility of mirror-inverted fixation
- Fixation on the wall, on the ceiling, back to back or side by side
- Cable entry from above
- Grounding possibility
- Height-adjustable frame feet
Scope of delivery:
- 1 pc. 2LINE ODF 220 Active
- 1 pc. Assembly instruction
- 2LINE ODF door set, 2-piece with 3-point rod locking system, swivelling lever prepared for profile half cylinder (optional)
- 2LINE ODF side panel (optional)
- 2LINE Cable duct system top and bottom (optional)
- 2LINE Depth adapter for increasing the installation depth (optional)
Dimensions:
- HxWxD[mm]: 2200x900x300
Downloads
No downloads available
Data sheet & tender specification
For download of data sheet and tender specification please configurate the product in the section below and download via the symbol
Variants
| Height (mm) | Order ref. | Article no. | |
|---|---|---|---|

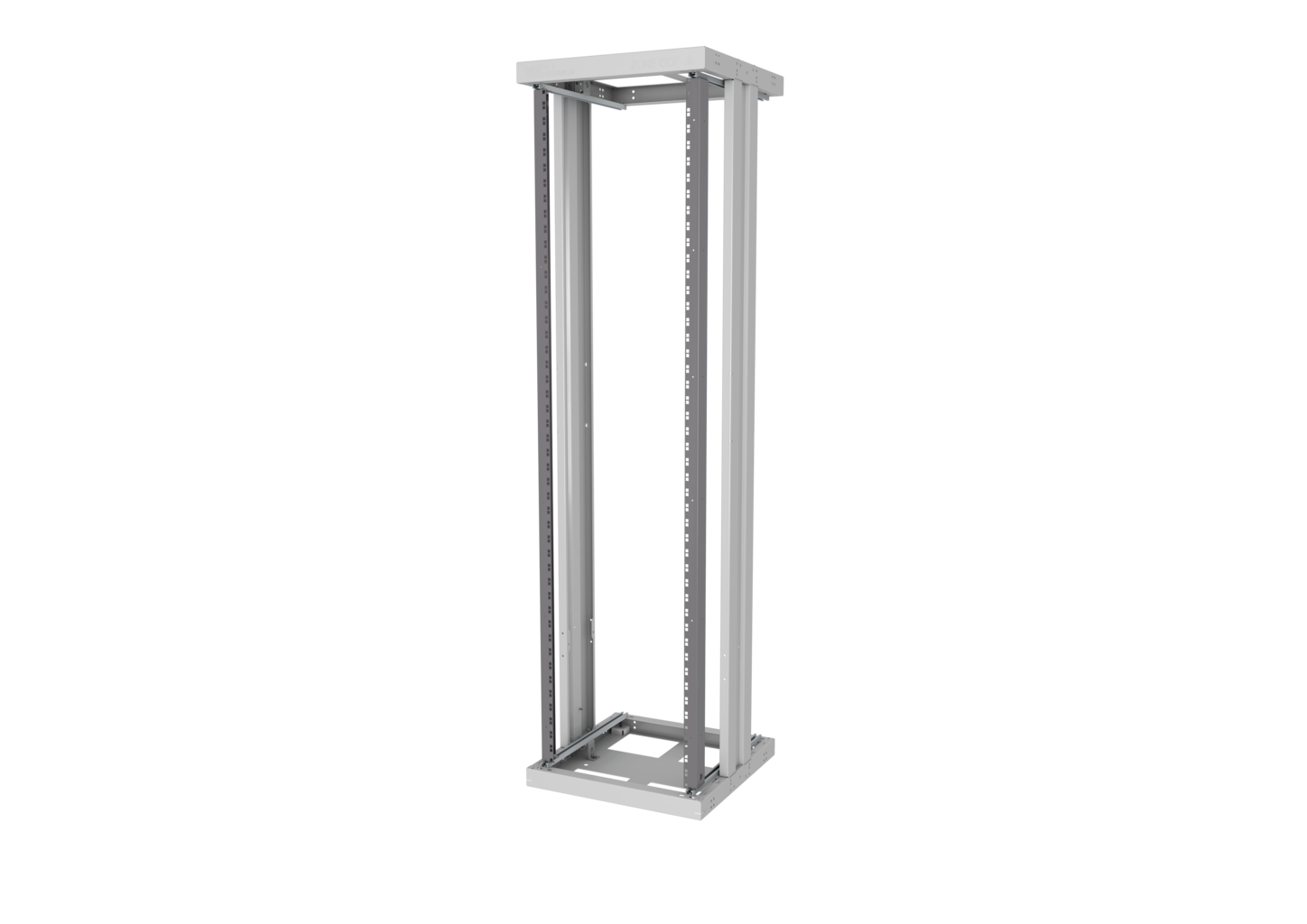

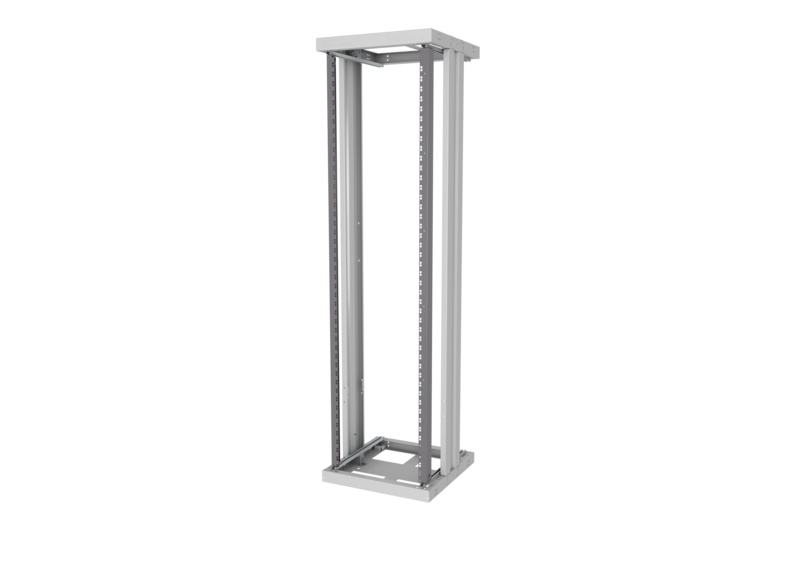

| 2200 | 2LINE ODF 220 Aktiv 60x60 19" 46HE | 22001 |  |

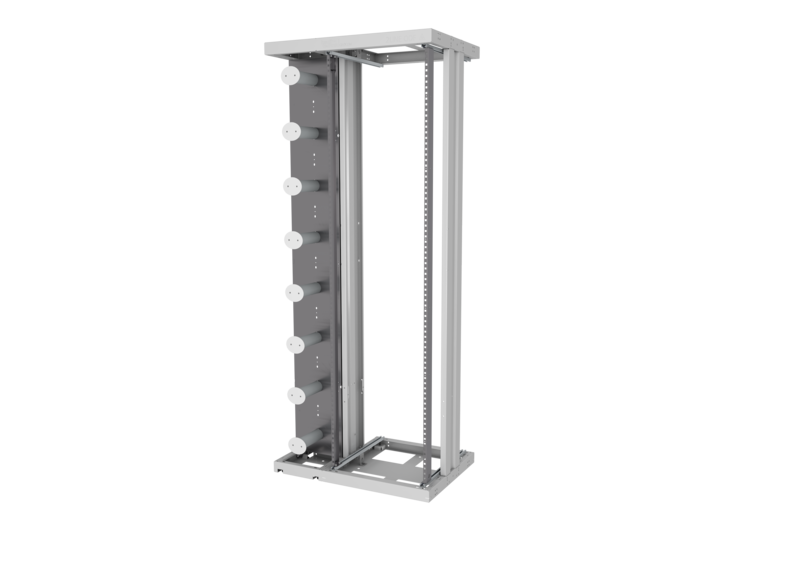

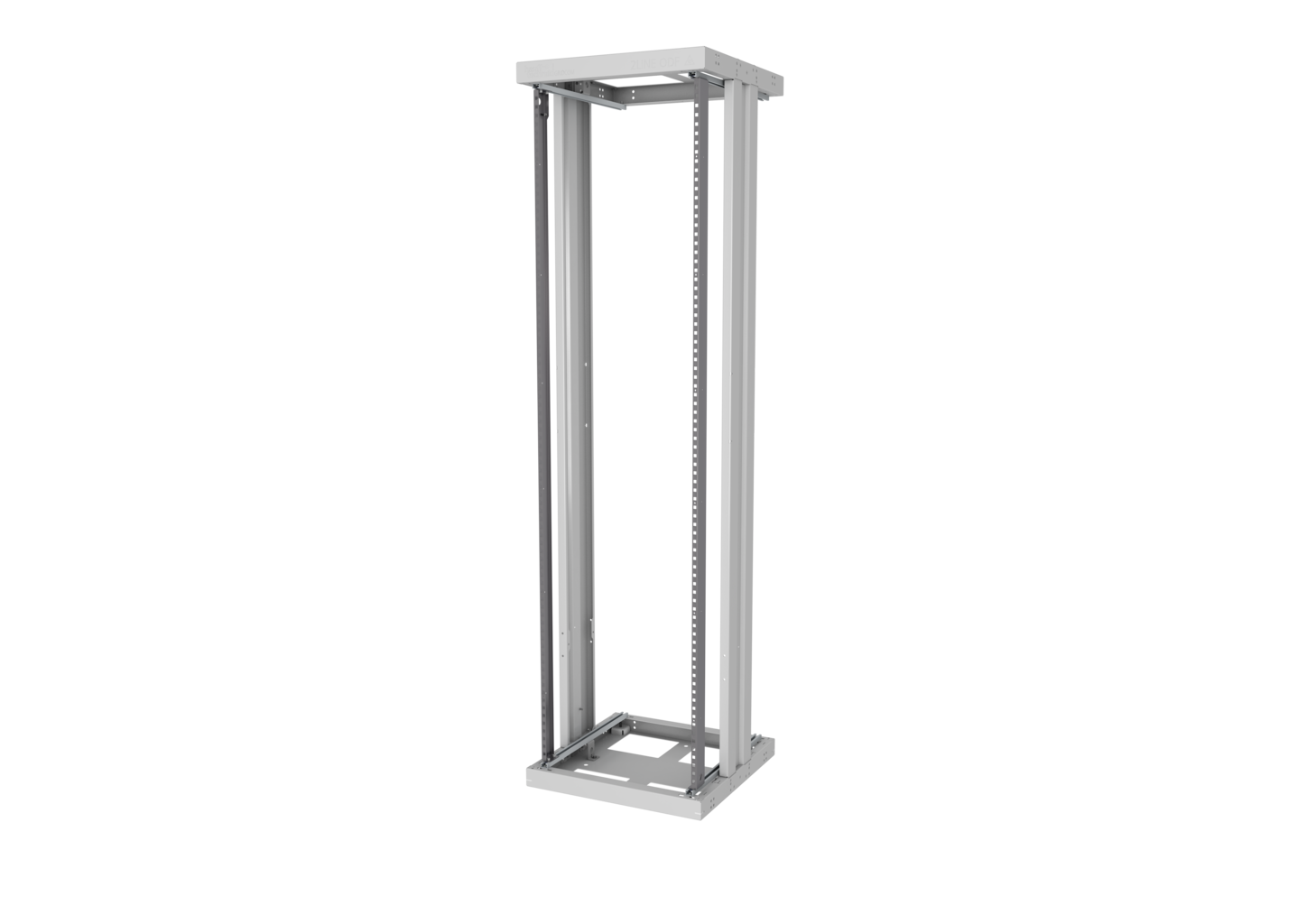

| 2200 | 2LINE ODF 220 Aktiv 60x60 ETSI 2,0m | 22002 | |
