House connectionGFH20 PRO

Fibre optic building entry

for buildings without a basement

GFH20 PRO

Fibre optic building entry - for buildings without a basement

Product
available at

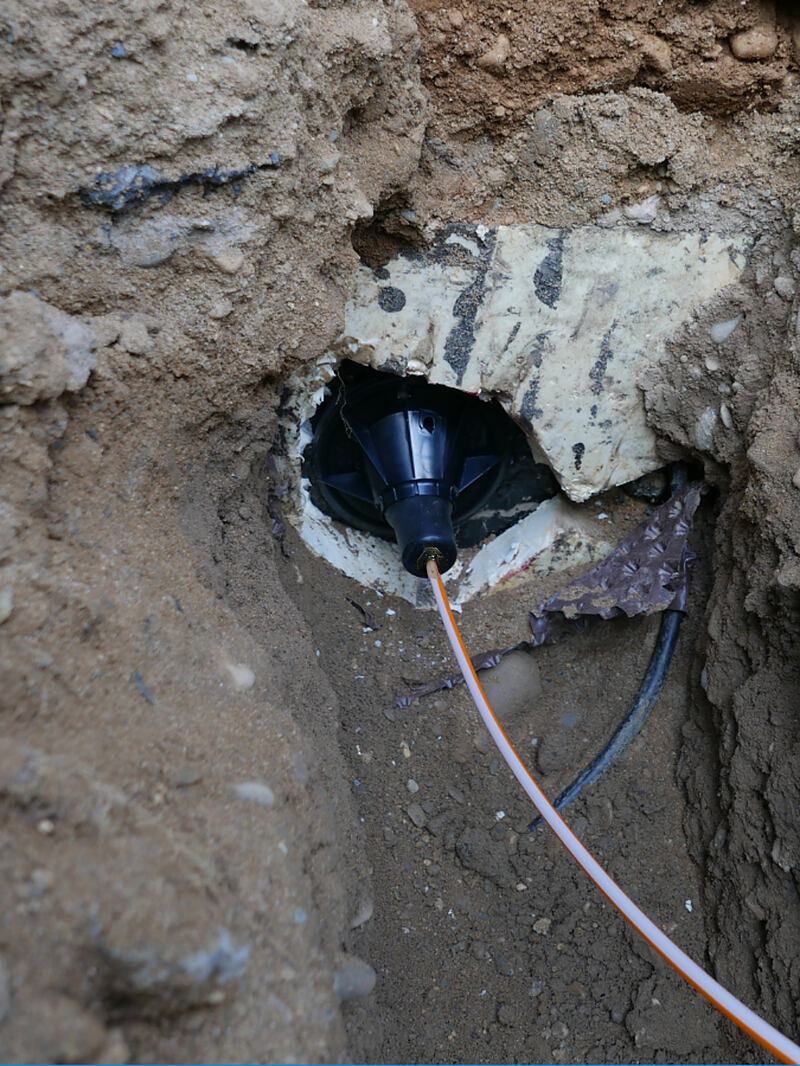

universal building entry with injection system for drill holes in the most common types of wall

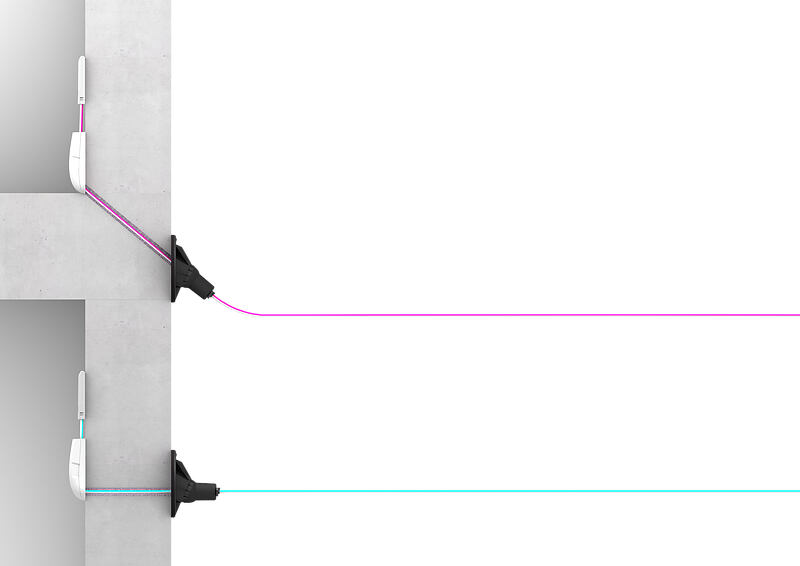

enables horizontal or oblique installation up to a 45° angle
low-impact sealing of fibre optic cables by means of sealing lips

For reliable sealing of fibre optic cables.

Fibre optic building entry - for buildings without a basement

Facts

Material:

Waterproof concrete stress class 2, Waterproof concrete stress class 1
Flange: ABS
Ball insert: EPDM
Sealing tape: Butyl
Mounting disc: PA
Pipeklemme: ABS

Advantages:

Quick to assemble in just a few minutes
Small opening diameter Øi 20 mm
Wall connection for guided deflection and mechanical protection of cables on the inside the building

Scope of delivery:

1 piece of GFH20
1 piece of Hauff RESINATOR 2-component resin, 80 ml
1 piece of mixing nozzle
1 piece of wall terminator element
suitable number of pipe clamps, depending on variant

Dimensions:

Area of application: 2 fibre-optic cables with Øa 7-10 mm or 1 fibre-optic cable with Øa 6 - 13 mm or 1 fibre-optic cable with Øa 12 - 16 mm
for drill holes Øi: 20 mm
for wall thicknesses starting from 100 mm

Downloads

Brochures

Assembly instructions

GFH20 PRO (PDF, 4MB)

Test reports

Data sheet & tender specification

For download of data sheet and tender specification please configurate the product in the section below and download via the symbol

Variants

Number of cables/medium	Suitable for medium pipe OD (mm)	Order ref.	Article no.
2	7 - 10	GFH20 2x7-10 PRO*	2900001311	Your download for the choosen variant: Datenblatt Download (.pdf) Tender specifications Text view (.txt) Word (.docx) Quantity:
1	6 - 13	GFH20 1x6-13 PRO	2900001313	Your download for the choosen variant: Datenblatt Download (.pdf) Tender specifications Text view (.txt) Word (.docx) Quantity:
1	12 - 16	GFH20 1x12-16 PRO	2900001315	Your download for the choosen variant: Datenblatt Download (.pdf) Tender specifications Text view (.txt) Word (.docx) Quantity:

Accessories

Wall terminator element For fibre-optic building entry

Wall terminator element

2-component resin Resinator expansion resin

2-component resin Resinator

Cartridge gun for side-by-side cartridges

Cartridge gun

(Required for installation)
