Fibre optic building entry
for buildings without a basement
GFH30 PRO
Product
available at
available at
- universal building entry with injection system for drill holes in the most common types of wall

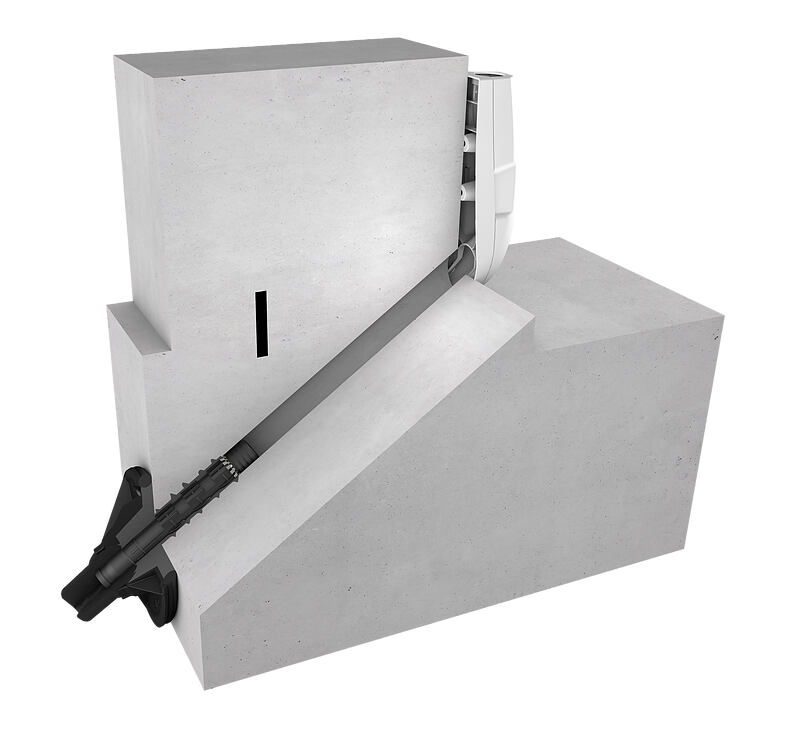

- enables horizontal or oblique installation up to a 45° angle
- low-impact sealing of fibre optic cables by means of sealing lips
For reliable sealing of fibre optic cables.
Facts
Material:
- Waterproof concrete stress class 2, Waterproof concrete stress class 1
- Flange and punching pin: ABS
- Ball insert: EPDM
- Sealing tape: butyl
- Corrugated pipe: PE
Advantages:
- Quick to assemble in just a few minutes
- Not necessary to restore basement seal to DIN 18533
Scope of delivery:
- 1 piece of GFH30
- 1 piece of wall terminator element
- 1 piece of 2-component resin RESINATOR, 80 ml
- 1 piece of mixing nozzle
Dimensions:
- Area of application: 2 fibre-optic cables with Øa 7-10 mm or 1 fibre-optic cable with Øa 6 - 13 mm or 1 fibre-optic cable with Øa 12 - 16 mm
- for drill holes: ID 30 mm
- For wall thicknesses starting from 200 mm
Downloads
Brochures
Assembly instructions
Data sheet & tender specification
For download of data sheet and tender specification please configurate the product in the section below and download via the symbol
Variants
| Number of cables/medium | Suitable for medium pipe OD (mm) | Order ref. | Article no. | |
|---|---|---|---|---|
| 2 | 7 - 10 | GFH30 2x7-10 PRO | 3030535881 |  |
| 1 | 6 - 13 | GFH30 1x6-13 PRO | 3030535887 | |
| 1 | 12-16 | GFH30 1x12-16 PRO | 3030535888 | |
