House connectionMIS60D

Membrane injection system

for buildings with a basement

MIS60D

Membrane injection system - for buildings with a basement

Product
available at

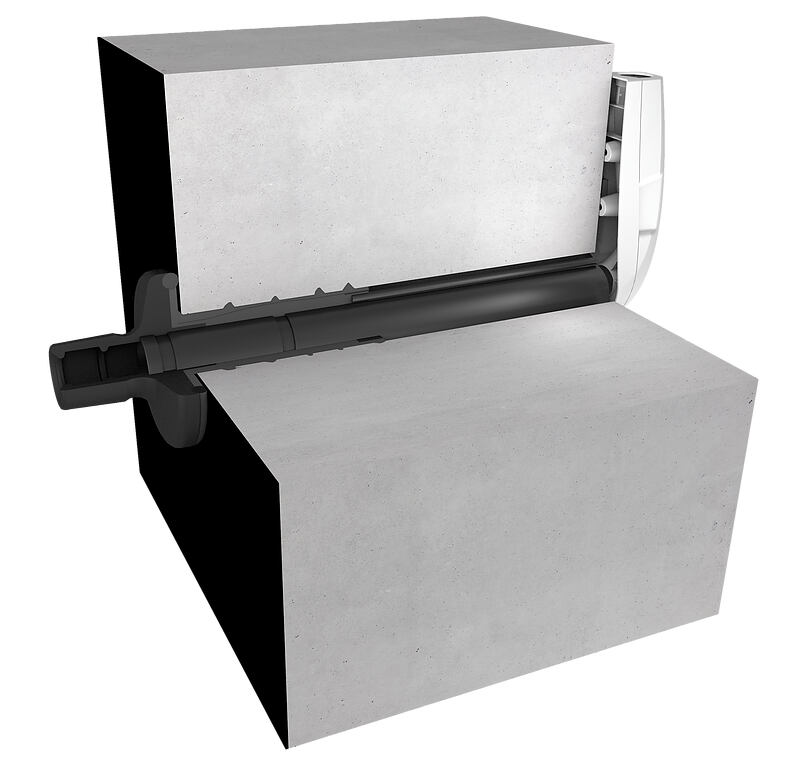

universal building entry with membrane injection system for drill holes in the most common types of wall
controlled ejection of resin through slit membrane hose
sealing lips ensure gentle seal for media lines

For existing buildings with a basement for reliable sealing of standard water lines.

Membrane injection system - for buildings with a basement

Facts

Material:

Waterproof concrete stress class 2, Waterproof concrete stress class 1
Flange, seal insert, counter-bearing and adapter: EPDM
Sealing tape: butyl
Resin filler hose: PE
Wall rosette: PE
Pipe: PVC-U
Wall terminator element: Flame-retardant polycarbonate
Fast arrangement fixture: glass fibre reinforced polyamide/ABS

Advantages:

Quick to assemble in just a few minutes
Not necessary to restore basement seal to DIN 18533
Variety of seal inserts for variable configuration

Scope of delivery:

1 packing unit:
10 pieces of MIS 60D including pre-mounted seal insert
10 pieces of wall terminator element (only for communication variant)
10 pieces of wall collar (only with electricity variant)
1 piece 2-component resin Resinator, 150 ml
1 piece of quick tensioning device MIS60 SVS

Dimensions:

For core drills Ø: 62 - 65 mm
For wall thicknesses: from 200 to 1200 mm

Downloads

Brochures

Assembly instructions

MIS60D (PDF, 2MB)

Test reports

Data sheet & tender specification

For download of data sheet and tender specification please configurate the product in the section below and download via the symbol

Variants

Number of cables/medium	Suitable for medium pipe OD (mm)	Overall lenght (mm)	wall thickness (mm)	Order ref.	Article no.
4	5 - 7	1000	200 - 900	MIS60D 4x5-7 BL1000 Set10	3030380170	Your download for the choosen variant: Datenblatt Download (.pdf) Tender specifications Text view (.txt) Word (.docx) Quantity:
3	10	1000	200 - 900	MIS60D 3x10 BL1000 Set10	3030380171	Your download for the choosen variant: Datenblatt Download (.pdf) Tender specifications Text view (.txt) Word (.docx) Quantity:
1	6 - 12	1000	200 - 900	MIS60D 1x6-12 BL1000 Set10	3030380172	Your download for the choosen variant: Datenblatt Download (.pdf) Tender specifications Text view (.txt) Word (.docx) Quantity:
1	12 - 18	1000	200 - 900	MIS60D 1x12-18 BL1000 Set10	3030380174	Your download for the choosen variant: Datenblatt Download (.pdf) Tender specifications Text view (.txt) Word (.docx) Quantity:
1	18 - 24	1000	200 - 900	MIS60D 1x18-24 BL1000 Set10	3030380175	Your download for the choosen variant: Datenblatt Download (.pdf) Tender specifications Text view (.txt) Word (.docx) Quantity:
1	24 - 30	1000	200 - 900	MIS60D 1x24-30 BL1000 Set10	3030380176	Your download for the choosen variant: Datenblatt Download (.pdf) Tender specifications Text view (.txt) Word (.docx) Quantity:
1	30 - 34	1000	200 - 900	MIS60D 1x30-34 BL1000 Set10	3030382134	Your download for the choosen variant: Datenblatt Download (.pdf) Tender specifications Text view (.txt) Word (.docx) Quantity:

Number of cables/medium	Suitable for medium pipe OD (mm)	Overall lenght (mm)	wall thickness (mm)	Order ref.	Article no.
4	5 - 7	1300	900 - 1.200	MIS60D 4x5-7 BL1300 Set10	3030391738	Your download for the choosen variant: Datenblatt Download (.pdf) Tender specifications Text view (.txt) Word (.docx) Quantity:
3	10	1300	900 - 1.200	MIS60D 3x10 BL1300 Set10	3030391739	Your download for the choosen variant: Datenblatt Download (.pdf) Tender specifications Text view (.txt) Word (.docx) Quantity:
1	6 - 12	1300	900 - 1.200	MIS60D 1x6-12 BL1300 Set10	3030391740	Your download for the choosen variant: Datenblatt Download (.pdf) Tender specifications Text view (.txt) Word (.docx) Quantity:
1	12 - 18	1300	900 - 1.200	MIS60D 1x12-18 BL1300 Set10	3030391741	Your download for the choosen variant: Datenblatt Download (.pdf) Tender specifications Text view (.txt) Word (.docx) Quantity:
1	18 - 24	1300	900 - 1.200	MIS60D 1x18-24 BL1300 Set10	3030391742	Your download for the choosen variant: Datenblatt Download (.pdf) Tender specifications Text view (.txt) Word (.docx) Quantity:
1	24 - 30	1300	900 - 1.200	MIS60D 1x24-30 BL1300 Set10	3030391743	Your download for the choosen variant: Datenblatt Download (.pdf) Tender specifications Text view (.txt) Word (.docx) Quantity:
1	30 - 34	1300	900 - 1.200	MIS60D 1x30-34 BL1300 Set10	3030391744	Your download for the choosen variant: Datenblatt Download (.pdf) Tender specifications Text view (.txt) Word (.docx) Quantity:
