Membrane injection system
for buildings without a basement
MIS60S
Product
available at
available at
- universal building entry with membrane injection system for sloping drill holes through floor slabs or walls
- controlled ejection of resin through slit membrane hose
- sealing lips ensure gentle seal for media lines

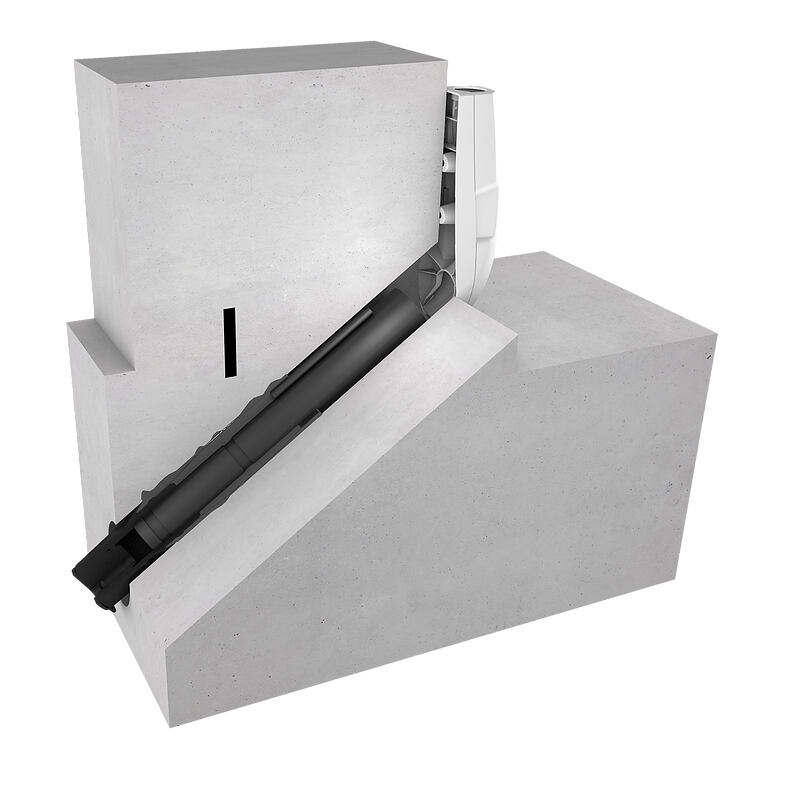

Suitable for sloping entry through the wall or floor slab.
Facts
Material:
- Waterproof concrete stress class 2, Waterproof concrete stress class 1
- Flange, seal insert, counter-bearing and adapter: EPDM
- Resin filler hose: PE
- Wall rosette: PE
- Pipe: PVC-U
- Wall terminator element: Flame-retardant polycarbonate
- Fast arrangement fixture: glass fibre reinforced polyamide/ABS
Advantages:
- Quick to assemble in just a few minutes
- Not necessary to restore basement seal to DIN 18533
- Variety of pre-mounted seal inserts for variable configuration
Scope of delivery:
- 1 packing unit:
- 10 pieces of MIS 60S
- 10 pieces of wall terminator element (only for communication variant)
- 10 pieces of wall collar (only with electricity variant)
- 10 pieces 2-component resin Resinator, 150 ml
- 1 piece of quick tensioning device MIS60 SVS
Dimensions:
- For core drills Ø: 62 - 65 mm
- Overall length: 1300 mm
Downloads
Brochures
- MIS 2021 - Bewährte Technik neu gedacht (PDF, 2MB)
- Safety Data Sheet Resinator Comp. A (PDF, 426KB)
- Safety Data Sheet Resinator Comp. B (PDF, 535KB)
Assembly instructions
Data sheet & tender specification
For download of data sheet and tender specification please configurate the product in the section below and download via the symbol
Variants
| Number of cables/medium | Suitable for medium pipe OD (mm) | Overall lenght (mm) | wall thickness (mm) | Order ref. | Article no. | |
|---|---|---|---|---|---|---|
| 4 | 5 - 7 | 1300 | 200 - 1.200 | MIS60S 4x5-7 BL1300 Set10 | 3030380178 |  |
| 3 | 10 | 1300 | 200 - 1.200 | MIS60S 3x10 BL1300 Set10 | 3030380179 | |
| 1 | 6 - 12 | 1300 | 200 - 1.200 | MIS60S 1x6-12 BL1300 Set10 | 3030380180 | |
| 1 | 12 - 18 | 1300 | 200 - 1.200 | MIS60S 1x12-18 BL1300 Set10 | 3030380182 | |
| 1 | 18 - 24 | 1300 | 200 - 1.200 | MIS60S 1x18-24 BL1300 Set10 | 3030380183 | |
| 1 | 24 - 30 | 1300 | 200 - 1.200 | MIS60S 1x24-30 BL1300 Set10 | 3030380184 | |
| 1 | 30 - 34 | 1300 | 200 - 1.200 | MIS60S 1x30-34 BL1300 Set10 | 3030382135 | |
