Membrane injection system
for buildings without a basement
MIS60S E SET
Product
available at
available at

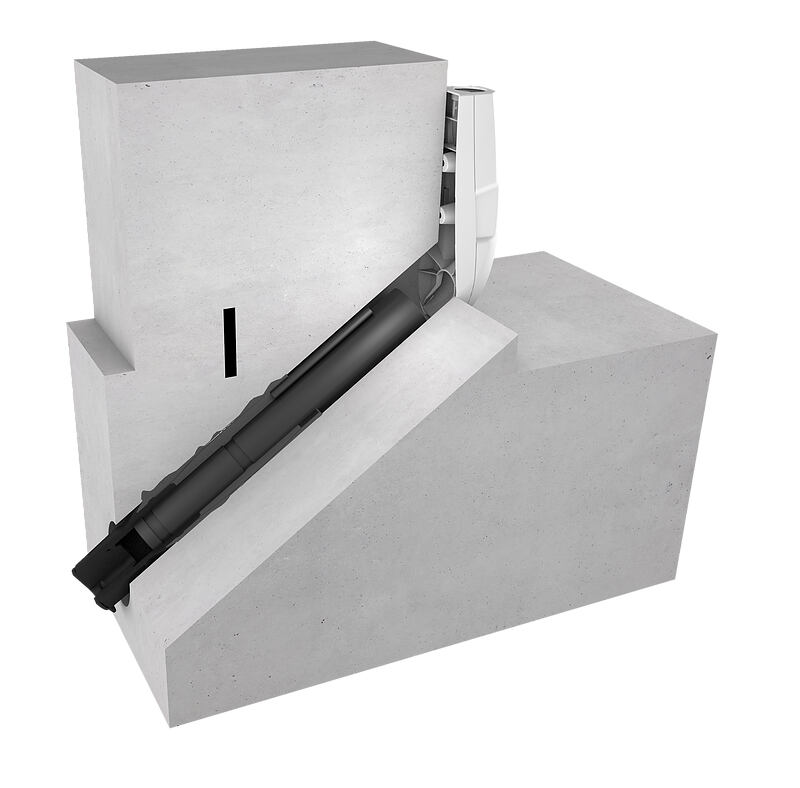

- universal building entry with membrane injection system for sloping drill holes through floor slabs or walls
- controlled ejection of resin through slit membrane hose
- sealing lips ensure gentle seal for media lines
Suitable for sloping entry through the wall or floor slab.
Facts
Material:
- Waterproof concrete stress class 2, Waterproof concrete stress class 1
- Flange, seal insert, counter-bearing and adapter: EPDM
- Resin filler hose: PE
- Wall rosette: PE
- Pipe: PVC-U
- Wall terminator element: Flame-retardant polycarbonate
Advantages:
- Quick to assemble in just a few minutes
- Not necessary to restore basement seal to DIN 18533
- Variety of pre-mounted seal inserts for variable configuration
Scope of delivery:
- 1 piece of MIS60S
- 1 piece of wall terminator element
- 1 piece of wall rosette
- 10 pieces 2-component resin Resinator, 150 ml
Dimensions:
- For core drills Ø: 62 - 65 mm
- Overall length: 1300 mm
Downloads
Variants
| Number of cables/medium | Suitable for medium pipe OD (mm) | wall thickness (mm) | Order ref. | Article no. | |
|---|---|---|---|---|---|
| 1 1 1 1 3 4 | 24-30 18-24 12-18 6-12 10 5-7 | 200 - 1.200 | MIS60S E BL1300 SET1 | 3030453466 |   |
