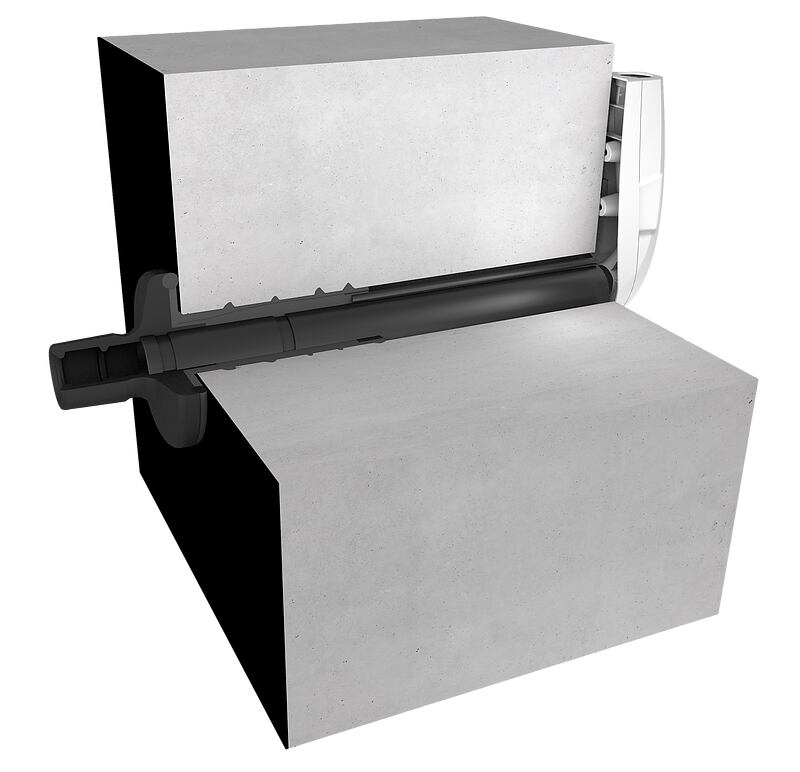

Membrane injection system
for buildings with a basement
MIS60D E SET
Product
available at
available at
- universal building entry with membrane injection system for drill holes in the most common types of wall
- controlled ejection of resin through slit membrane hose
- sealing lips ensure gentle seal for media lines
For existing buildings with a basement for reliable sealing of standard water lines.
Facts
Material:
- Waterproof concrete stress class 2, Waterproof concrete stress class 1
- Flange, seal insert, counter-bearing and adapter: EPDM
- Sealing tape: butyl
- Resin filler hose: PE
- Wall rosette: PE
- Pipe: PVC-U
- Wall terminator element: Flame-retardant polycarbonate
Advantages:
- Quick to assemble in just a few minutes
- Not necessary to restore basement seal to DIN 18533
- Variety of seal inserts for variable configuration
Scope of delivery:
- 1 piece of MIS60D including pre-mounted seal insert
- 1 piece of wall terminator element
- 1 piece of wall rosette
- 10 pieces 2-component resin Resinator, 150 ml
Dimensions:
- For core drills Ø: 62 - 65 mm
- For wall thicknesses: from 200 to 1200 mm
Downloads
Brochures
- MIS 2021 - Bewährte Technik neu gedacht (PDF, 2MB)
- Safety Data Sheet Resinator Comp. A (PDF, 426KB)
- Safety Data Sheet Resinator Comp. B (PDF, 535KB)
Assembly instructions
Test reports
Data sheet & tender specification
For download of data sheet and tender specification please configurate the product in the section below and download via the symbol
Variants
| Number of cables/medium | Suitable for medium pipe OD (mm) | wall thickness (mm) | Order ref. | Article no. | |
|---|---|---|---|---|---|
| 1 1 1 1 3 4 | 24-30 18-24 12-18 6-12 10 5-7 | 200 - 900 | MIS60D E BL1000 SET1 | 3030453433 |  |
| 1 1 1 1 3 4 | 24-30 18-24 12-18 6-12 10 5-7 | 900 - 1.200 | MIS60D E BL1300 SET1 | 3030453449 | |
