2LINE Multi-Function Cabinet MFC 18

Facts

Advantages:

• Supports all common cabling systems, micro cables and blown fibre systems
• Equipped with fibre optic modules, 19"- or ETSI installation frame, air conditioning, UPS, batteries and intelligent cable management as required
• Double walls on a stable frame with a sealed base plate protect the passive or active technology against mechanical loads, moisture, heat and cold
• Sealed cable entries in the base plate ensure the level of protection in the interior
• Doors with single or double locking system
• Roof structure for ventilation and air conditioning
• Cable strain relief system
• Bending radius control for cables and fibres
• Patch cable system with only one standard length

Scope of delivery:

• 1 pc. 2LINE MFC 18
• Door contact switch (optional)
• Double lock systems (optional)
• Interior lighting (optional)
• Power strip (optional)
• Flexible battery trays (optional)
• Vertical or horizontal cable support rails (optional)
• Cooling with heat exchanger, operating voltage 48 VDC (optional)
• Heating (optional)
• Possibility to install passive optical splitters and wavelength multiplexers (up to 64 splitters) (optional)
• Depth-adjustable profile rails for active technology / copper: 19" width 465mm (hole spacing), grid 44.45mm, capacity 21U; ETSI width 515mm (hole spacing), grid 25mm, capacity 37U (optional)
• Cable bushings (optional)
• Splice/patch modules (optional)
• Ground socket for MFC 18 (optional)

Dimensions:

• Housing HxWxD[mm]: 1600x2000x500

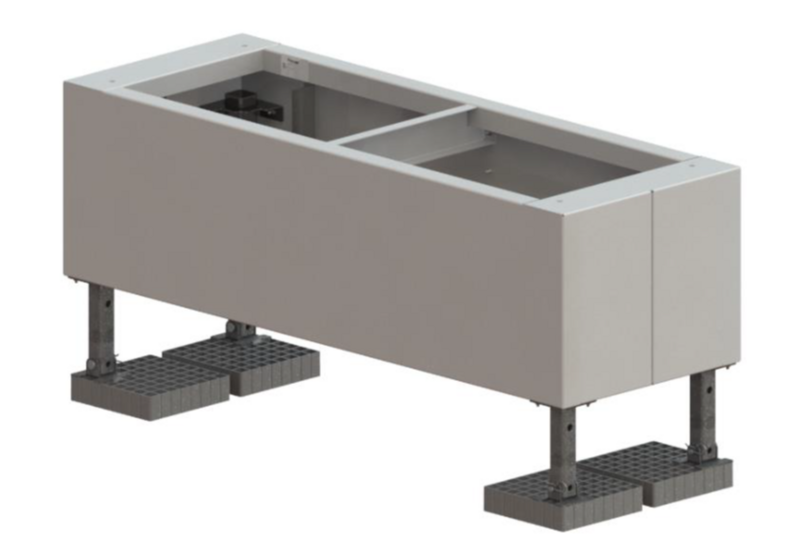

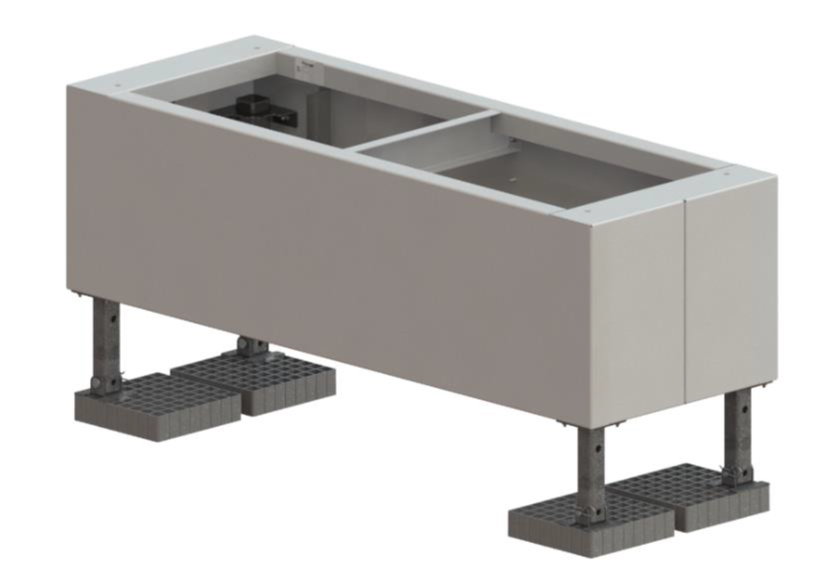

• Base HxWxD[mm]: 510-660x2000x500

Tests/Standards:

• Environmental protection class IP55
• Resistance class RC2
