2LINE Optical Distribution Frame ODF 220

Optical distribution frame


2LINE Optical Distribution Frame ODF 220 - Optical distribution frame
  • Cost and space-saving distribution system with a storage capacity of up to 3.024 ports or 42U
  • Smart patch cable management with uniform patch cable lengths
  • Quick and easy assembly on site or customized pre-installation ex works
The 2LINE ODF is an all-in-one high density and easy-to-use patch cable management solution for passive fibre optic networks.
Go to the configurator



  • Excellent for all standard cable, micro cable and blown fibre systems
  • The cable entrance plate allows cable entry from below or above
  • Routing of fibre bundles to the splice/patch modules in protected micro tubes
  • Completely mirror-inverted construction possible due to symmetrical components (left/right)
  • Routing of fibre bundles as a guided variant in combs or with free routing individually selectable
  • Assembly of the modules in standard, 19” back fixation and optional 19“ front fixation
  • Installation of deeper 19” modules possible by back-to-back fixation with optional intermediate frame possible
  • Patch cable routing through cable duct on base frame or optionally on roof frame
  • Modular system with a high fibre density
  • Customized configuration
  • Bending radius control for all cables, fibres and patch cables
  • Central management of loose tube cables
  • Fixation on the wall, on the ceiling, back to back or side by side
  • Removable modules for easy splicing
  • Uniform cable length of 2.60m within the patch cable management system

Scope of delivery:

  • 1 pc. 2LINE ODF 220
  • 1 pc. Assembly instruction
  • Optional:
  • 2LINE ODF door set, 2-piece with 3-point rod locking system, swivelling lever prepared for profile half cylinder (optional)
  • 2LINE ODF side panel (optional)
  • 2LINE Cable duct system at the top and bottom (optional)
  • 2LINE Cover KAP (bundle loader protection) (optional)
  • 2LINE Cover plate roof (optional)
  • 2LINE Splitter holder and splitters (optional)
  • 2LINE Splice/Patch Modules (optional)
  • 2LINE Central support element (optional)
  • 2LINE Bracket clamps (optional)

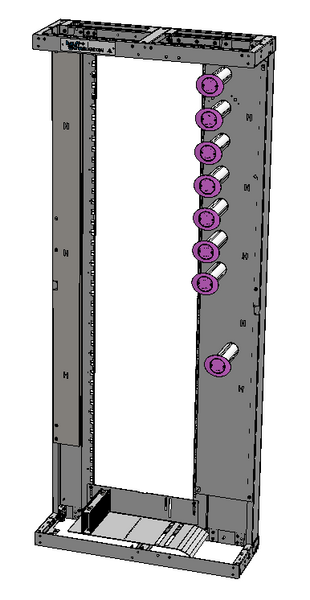

  • HxWxD[mm]: 2200x900x300


Available modules for this cabinet:
